Jackson WWS Tempstar HH-E
Jackson WWS Tempstar HH-E

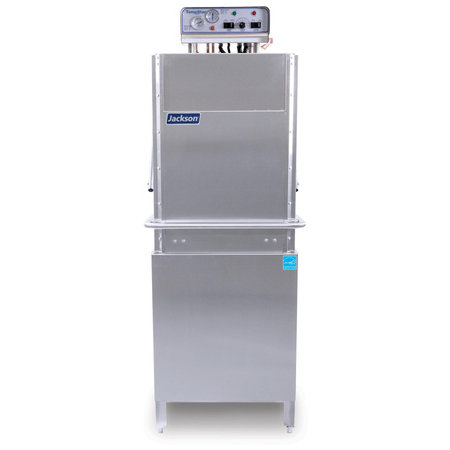

Jackson WWS Tempstar HH-E, 55 Rack/Hr Door Type Dishwasher, High Temperature Sanitizing, High Hood w/ Electric Booster Heater

Retail Price:$11,631.00 /ea

Business financing:
$279.14 /mo
Click to apply

Free Shipping

Get your price!WHY?
Login, "Add To Cart", or call us at 1-800-550-0706 to get your price!
Options and Accessories

Recommended for this item

Jackson WWS 06401-004-85-80
Jackson WWS 06401-004-85-80, Drain Quench System

$525.00 /ea

Jackson WWS Tempstar HH-E Overview

Dishwasher Details:

If you are hoping to make sure that you can get the cleaning cycle that makes you feel the most in control of your life, this one is going to come pretty close. The Jackson WWS Tempstar HH-E has a large space inside of it that is optimized for all of the hardest things to fit in, like those 18” baking sheets and 60 quart mixing bowls. It'll all be given to you in a format that you can understand with automatic cycles, and standard racks that fit everything you're aiming for exactly in the format that you're hoping to use it.

You can wash up to 55 racks per hour with this commercial dishwasher option and you'll be able to trust the single point connections that will link all utilities together. This unit even has a split door design that will help you to install it easily and also make sure that you can still use it in low ceiling spaces. This one is really great for those who need something that is designed to fit in those previously hard to reach spots.

To give you all of the comfort and automation that you need, you'll have everything put together in the format that you're looking for in your world with the Jackson WWS Tempstar HH-E .


  • 20-3/4” wide x 27“ high (527mm x 686mm) opening accommodates 18” x 26“ (457mm x 660mm) sheet pans and 60-quart mixing bowls
  • Sani-Sure™ feature assures proper rinse water temperature
  • Multi-cycle timer (Extra Heavy, Heavy, Medium, Normal)
  • Auto-fill / auto-start
  • Door switch
  • Delime/manual wash switch
  • Low watt density electric wash tank heater
  • Hi-limit thermostat and low water protection
  • Vent fan control shuts fan off when machine is idle
  • Adjustable bullet feet
  • Uses standard 20” x 20” (508 mm x 508 mm) racks
  • Front dress panel
  • Detergent/rinse additive signal connection fuse box
  • Lower counter-rotating wash arms and upper wash arm provide optimum spray coverage and superior cleaning action
  • Self-draining stainless steel pump
  • Split-door design accommodates installations with low ceiling heights
  • Large scrap basket
  • Uses 0.72 gallons (2.73 liters) of 180°F (82°C) water per rack
  • Total automatic (normal) cycle - 60 seconds
  • 55 racks per hour (normal) cycle
  • 2 HP Wash Pump Motor
  • Single point connections for all utilities
  • Field convertible from straight through to corner and vice versa
  • Durable stainless steel construction

Product Dimensions:

  • Width: 25.25 Inches
  • Depth: 25.25 Inches
  • Height: 76.75 Inches

Jackson WWS Warranty:

1 year parts and labor

WARNING:This product can expose you to chemicals including Bisphenol A (BPA), which is known to the state of California to cause cancer, birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov

Product Brand


Made in USAEnergy Star CertifiedETL Intertek Listed

Tempstar HH-E Resources

Jackson WWS Tempstar HH-E Specifications


OEM Numbers
Tempstar HH-E, Tempstar HH


25.25 Inches
25.25 Inches
76.75 Inches


393 Pounds
Racks per hour
208 Volts
Exterior Summary
Stainless Steel
Single Phase
230 Volts
Three Phase
Tank Heat
Booster Heater Included
Clean Type
High Temperature
Drain Pump Included
Energy Star
Standard Dishwashers
Dishwasher Style
Corner / Straight-Thru
ETL Listed
Single Rack
Pot & Pan Dishwashers
Product Condition


Manufacturer Warranty
1 year parts and labor
