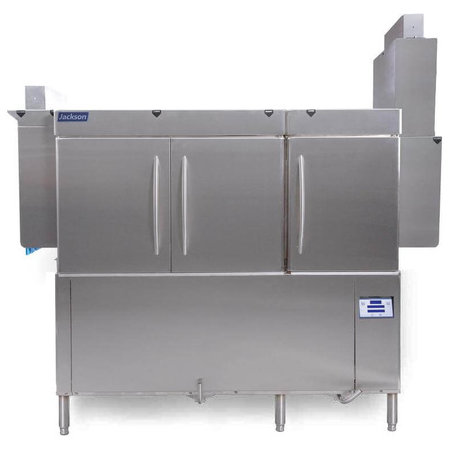

Jackson RACKSTAR 66CE ENERGY RECOVERY, 223 Racks/Hr, High Temperature Sanitizing Conveyor Dishwasher w/ Pre-Wash & Booster Heater, Electric Tank Heat

Designed for high‑volume kitchens, the Jackson RACKSTAR 66CE ENERGY RECOVERY conveyor dishwasher combines powerful cleaning with exceptional efficiency. A 22‑inch pre‑wash section with three upper and one lower spray arms scrubs off heavy soils before the main wash, enabling the machine to handle roughly 223 racks per hour. The built‑in energy‑recovery system captures exhaust heat and uses it to preheat incoming cold water to about 110 °F, reducing overall energy consumption compared with conventional models.

Operators can choose between Econo and Turbo rinse modes, using as little as 0.35 gallons of water per rack in Econo mode and 0.52 gallons per rack in Turbo mode. The WISR® cleaning system and self‑cleaning wash arms ensure thorough washing, while the Rainbow Rinse™ design delivers an even spray pattern for spotless results.

A 24‑kW booster heater (optional onboard) and 15‑kW wash tank heater maintain consistent high‑temperature sanitizing. Operators also benefit from a digital LED control panel, automatic tank fill, a delime cycle, and exclusive EnergyGuard™ controls that streamline start‑and‑stop functions. Double‑wall insulated doors help retain heat and reduce noise, and the 19‑3/4 inch chamber clearance accommodates taller wares. Built to last, the machine features stainless‑steel construction, splash shields, strainer pans and adjustable bullet feet.

Key Features & Benefits

• Energy‑saving heat recovery: repurposes exhaust heat to preheat incoming water, cutting energy costs.
• High throughput & low water use: cleans about 223 racks per hour and uses just 0.35 gallons per rack in Econo mode or 0.52 gallons in Turbo mode.
• 22‑inch pre‑wash section: three upper and one lower spray arms remove heavy food soils before the main wash, improving results.
• Adjustable rinse system: switch between Econo and Turbo modes to balance water usage and cleaning power.
• WISR® cleaning & Rainbow Rinse™: self‑cleaning wash arms and arched rinse arms deliver thorough washing and even final rinse coverage.
• Integrated heat: optional 24‑kW booster and 15‑kW wash tank heater maintain consistent sanitizing temperatures.
• Smart controls: EnergyGuard™ system automates cycle operation; digital LED display provides clear status and temperature readouts.
• Easy maintenance: automatic tank fill, delime cycle, self‑draining wash pump and hinged doors with large front access simplify cleaning and servicing.
• Durable & safe: double‑wall insulated doors, stainless‑steel strainer pans, splash shields, built‑in pressure regulator, strike‑plate table limit switch and adjustable vent collars ensure long service life and safe operation.

Product Dimensions:

• Width: 86 Inches
• Depth: 30 Inches
• Height: 82 Inches

Jackson Warranty:

1 year parts and labor
