Hoshizaki HS-0245

Hoshizaki HS-0245

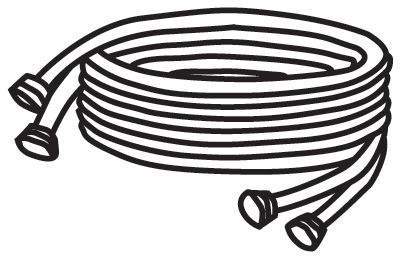

55' Tubing Kit Line Set for SRK-20H & SRK-20H3 Ice Machine Condenser, Brazing Required

$360.00 /ea

Product Overview

Line Set for Hoshizaki Ice Machine Details:

Introduce yourself to what quality means. In order to make sure that you get the most out of the quality that you are purchasing when it comes to something such as your wonderful and reliable remote air condenser for your ice cube machine, the Hoshizaki HS-0245 line set tubing is going to be an important purchase for you as well so that you'll have the best work going for you in terms of quality.

To make sure that you get the most use out of your warranty, this remote condenser and ice machine line set is going to prove to be important so that you will be able to put together the right kind of investment package for long term enjoyment.

Features:

All KMS Serenity Series

  • The maximum line set length is 66 feet. No refrigerant charge adjustment is necessary.
  • The maximum vertical distance between the remote condensing unit and icemaker is 33 feet above or 10 feet below the icemaker. These distances are measured fitting to fitting.
  • If the vertical distance between the remote condensing unit and the icemaker is greater than 20 feet (not to exceed 33 feet), an "S" oil-trap (5/8" OD tubing) must be installed in the suction line. The "S" oil-trap must be located halfway between the icemaker and remote condensing unit. This ensures sufficient oil return to the compressor.
  • KMS-822, KMS-830 and KMS-2000 are brazed line set connections.

All Flaker Serenity Series

  • The maximum line set length is 55' (17 m). No refrigerant charge adjustment is necessary.
  • The maximum vertical distance between the remote condensing unit and icemaker is 33' (10 m) above or 10' (3 m) below the icemaker. These distances are measured fitting to fitting.
  • If the vertical distance between the remote condensing unit and the icemaker is greater than 20' (6 m) (not to exceed 33' (10 m)), an "S" oil-trap (5/8" OD copper tubing) must be installed in the suction line. The "S" oil-trap must be located halfway between the icemaker and remote condensing unit. This ensures sufficient oil return to the compressor.

Note: Hoshizaki recommends that all new remote installations should include a new condenser and line set. The use of existing condensers is not recommended/allowed as they may not provide for optimum performance and could affect the refrigeration system warranty coverage.

WARNING: This product can expose you to chemicals known to the state of California to cause cancer, birth defects or other reproductive harm. For more information go to – www.P65Warnings.ca.gov

Specifications

Details

Product Condition
New
