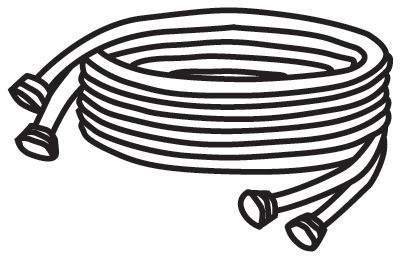

Hoshizaki HS-0244, 35' Tubing Kit Line Set for SRK-20H & SRK-20H3 Ice Machine Condenser, Brazing Required

Line Set for Hoshizaki Ice Machine Details:

There are a lot of things that you are going to need to get just right when you're looking at putting together the right introduction to professional quality and all that it can give you when you make use of it in the proper way. If you want to make sure that you do get it to do all that you want it to, this Hoshizaki HS-0244 ice machine and remote condenser line set kit is going to be what you need to work your equipment alongside each other.

You'll be in the perfect spot to see all parts of your commercial world coming together when you use this line kit to help make your air condenser purchase worthwhile.

Requirements:

All KMS Serenity Series

• The maximum line set length is 66 feet. No refrigerant charge adjustment is necessary.
• The maximum vertical distance between the remote condensing unit and icemaker is 33 feet above or 10 feet below the icemaker. These distances are measured fitting to fitting.
• If the vertical distance between the remote condensing unit and the icemaker is greater than 20 feet (not to exceed 33 feet), an "S" oil-trap (5/8" OD tubing) must be installed in the suction line. The "S" oil-trap must be located halfway between the icemaker and remote condensing unit. This ensures sufficient oil return to the compressor.
• KMS-822, KMS-830 and KMS-2000 are brazed line set connections.

All Flaker Serenity Series

• The maximum line set length is 55' (17 m). No refrigerant charge adjustment is necessary.
• The maximum vertical distance between the remote condensing unit and icemaker is 33' (10 m) above or 10' (3 m) below the icemaker. These distances are measured fitting to fitting.
• If the vertical distance between the remote condensing unit and the icemaker is greater than 20' (6 m) (not to exceed 33' (10 m)), an "S" oil-trap (5/8" OD copper tubing) must be installed in the suction line. The "S" oil-trap must be located halfway between the icemaker and remote condensing unit. This ensures sufficient oil return to the compressor.

Note: Hoshizaki recommends that all new remote installations should include a new condenser and line set. The use of existing condensers is not recommended/allowed as they may not provide for optimum performance and could affect the refrigeration system warranty coverage.
