Vulcan 4TR45CF-1

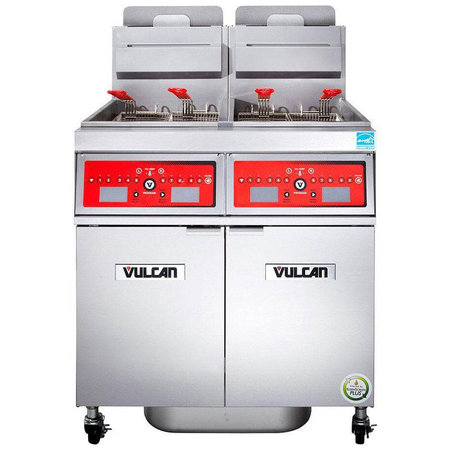

Model shown 2TR85CF. Model may differ from image shown. Some accessories may not be included.

Vulcan 4TR45CF-1 image 0Vulcan 4TR45CF-1 image 1Vulcan 4TR45CF-1 image 2

Vulcan 4TR45CF-1, 280,000 Btu Natural Gas Free Standing Fryer with Filtration, 180 Lb, TR Series

Retail Price:$61,240.00 /ea

Free Shipping

* Lead times vary based on manufacturer stock. Once your order has been processed, we will provide an estimated ship date.

Since this item is not be normally stocked in our warehouse, it may be shipped directly to you from the manufacturer or brought into our warehouse with our next stock order. As soon as the manufacturer provides us with your estimated shipping date, we will let you know. If you need your item by a certain date, please contact us before placing your order or leave a note at the checkout page, letting us know when you need it.

Vulcan 4TR45CF-1 Overview

Fryer Features:

  • Programmable computer controls with digital character display
    • 10 Menu timers display product name and cook times
    • Offline programming of menu items - Uploaded through USB interface (Software included)
    • Accurate temperature control - 200° to 390°F with digital display
    • Fast recovery - Cook with compensating time or actual time
    • Electronic ignition
    • Digital temperatures: Fahrenheit or Celsius
    • Three melt modes
  • 70,000 BTU/Hr input per fryer
  • Maintains idle temperature setting with only 4,318 BTU/Hr per fryer to save energy
  • Energy saving SoftStart ignition system extends oil life while requiring lower BTU's
  • Energy efficient ThreePass heat transfer system yielding 60% cooking and 72% thermal efficiency
  • Stainless steel fry tanks, 45-50 lb capacity
  • 1.25" Full port ball type drain valve
  • Stainless steel cabinet
  • Set of four adjustable casters, 2 locking
  • Twin fry baskets with plastic coated handles
  • Hi-limit shut off
  • Electronic matchless ignition
  • Tank brush and clean out rod

Filtration System Features:

  • Boil Out ByPass easily removes boil out solution from fry tank without contact of drain manifold, filter pan, or motor/pump
  • Drain valve interlock switch - turns off gas burners automatically when draining oil
  • Drawn (seamless) 18 gauge stainless steel filter pan, 70 lb frying compound capacity
  • Paperless stainless steel filter screen - Filters from 2 sides
  • 1/3 HP Motor and pump circulate frying compound at 8 GPM
  • One touch push button switch to engage pump and motor
  • Tank brush and clean out rod
  • 6' High temperature discard hose

Product Dimensions:

  • Width: 62 Inches
  • Depth: 30.16 Inches
  • Height: 36.25 Inches

Vulcan Warranty:

1 year limited parts and labor. 10 year limited tank.

Product Brand

4TR45CF-1 Resources

Vulcan 4TR45CF-1 Specifications

Dimensions

Width
62 Inches
Depth
30.16 Inches
Height
36.25 Inches

Details

Exterior Summary
Stainless Steel
Features
Built-in Filtration System
Features
Programmable Controls
Fry Baskets
8
Fry Pot Front to Back
14
Fry Pot Left to Right
14
Fry Pots
4
Burner Style
Tube
Fryer Capacity
180 Pounds
Capacity per Fry Pot
45 Pounds
Controls
Computer
Fryers
4
Gas Type
Natural
HP
1/3 HP
Interior
Stainless steel
Placement
Floor
Power
Gas
RPM's
1,750
Temperature
200° - 390°F
Total Input BTU / HR
280,000
Weight
871 Pounds
Product Condition
New

Warranty

Manufacturer Warranty All items that include a warranty are based on the manufacturer's warranty policy. Purchasers are subject to working directly with the manufacturer to start & finish the warranty process. Note: Some manufacturers' warranties may not cover products when used in a residential setting. To ensure your intended use is covered, please contact us to verify the warranty terms before purchasing.
1 year limited parts and labor. 10 year limited tank.
