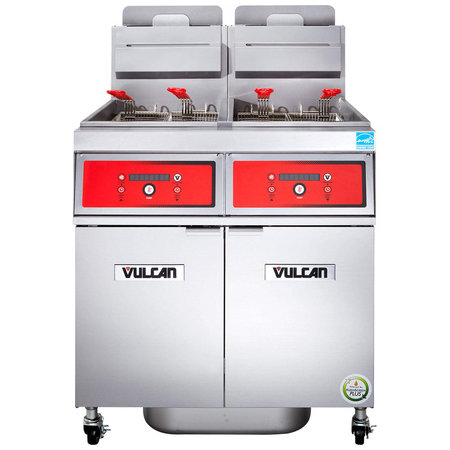

Vulcan 3VK45DF-1, 150 Lb PowerFry5 Natural Gas Freestanding Fryer w/ Built-In Filtration, 210,000 BTU

Model Specifics: Digital controls, KleenScreen Plus filtration system.

Benefits:

• Built-in filtration system encourages more frequent filtering between batches or parts of the day
• Kleenscreen Plus filtration system extends oil life by 200-400%
• Improves filtration with reusable stainless steel mesh screen, eliminating the need to purchase paper filters
• FivePass™ heat transfer system cooks up to 30% more lbs/hr than standard fryers and up to 14% more lbs/hr than competitor fryers
• Efficient heat transfer provides annual gas savings of up to 60% over standard fryers and 25% over competitor fryers
• SoftStart™ ignition system heats oil quickly while using half the BTUs at startup, extending oil life and reducing oil costs
• Solid state digital controls achieve higher productivity than millivolt control systems while cooking more consistently from batch to batch
• Built-in timers and auto boil-out mode help increase efficiency
• Meets the demands of the most high volume operations

Fryer Features:

• Maintains idle temperature setting with only 4,251 BTU/hr per vat to save energy
• Energy saving SoftStart™ ignition system extends oil life while requiring lower BTU’s
• Energy Efficient FivePass™ heat transfer system yielding 66% cooking efficiency and 78% thermal efficiency
• Digital controls provides fast recovery and accurate temperature control between 200° - 390°F
• Two countdown timers
• Three melt modes
• Auto boil-out mode
• Less than 500°F flue temperatures at maximum production rate
• ENERGY STAR® certified
• Stainless steel fry tanks with 45 - 50 lb capacity per vat
• 70,000 BTU/hr. input per vat
• 1-1/4" full port ball type drain valve
• Stainless steel cabinet
• 6" Adjustable casters w/ brakes on front set
• Includes two (2) twin fry baskets with plastic coated handles per vat
• Hi-limit shut-off
• Electronic matchless ignition
• Includes tank brush and clean-out rod

Filtration System Features:

• Drain valve interlock switch shuts off gas burners automatically when draining oil
• Stainless steel filter pan, 70 lbs frying compound capacity
• 105 sq in Stainless steel mesh filter and fabric envelope
• 1/3 HP motor and pump circulates frying compound at 8 gallons per minute
• One touch push button switch to engage pump and motor
• High temperature discard hose

Product Dimensions:

• Width: 46.5 Inches
• Depth: 30.1 Inches
• Height: 47.1 Inches

Vulcan Warranty:

1 year limited parts and labor, 10 year limited fryer tank
