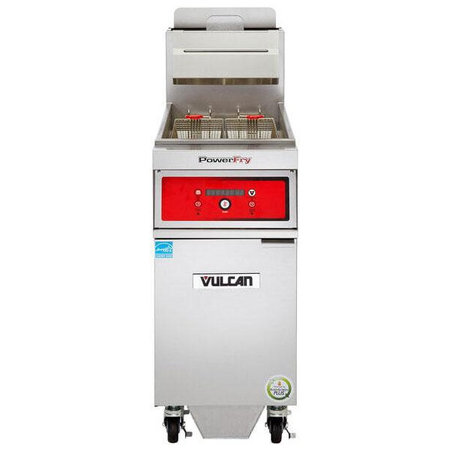

Vulcan 1TR85DF-1, 90 Lb PowerFry3 Natural Gas Freestanding Fryer w/ Built-In Filtration, 90,000 BTU

Model Specifics: Digital controls, KleenScreen Plus filtration system.

Benefits:

• Built-in filtration system encourages more frequent filtering between batches or parts of the day
• Kleenscreen Plus filtration system extends oil life by 200-400%
• Improves filtration with reusable stainless steel mesh screen, eliminating the need to purchase paper filters
• ThreePass™ heat transfer system cooks up to 30% more lbs/hr than standard fryers and up to 14% more lbs/hr than competitor fryers
• Efficient heat transfer provides annual gas savings of up to 60% over standard fryers and 25% over competitor fryers
• SoftStart™ ignition system heats oil quickly while using half the BTUs at startup, extending oil life and reducing oil costs
• Solid state digital controls achieve higher productivity than millivolt control systems while cooking more consistently from batch to batch
• Built-in timers and auto boil-out mode help increase efficiency

Features:

• Ideal for medium to high volume operations
• Maintains idle temperature setting with only 5,575 BTU/hr. to save energy
• Energy saving SoftStart™ ignition system extends oil life while requiring lower BTU’s
• Energy Efficient ThreePass™ heat transfer system yielding 60% cooking efficiency and 72% thermal efficiency
• Digital controls provides fast recovery and accurate temperature control between 200° - 390°F
• Two countdown timers
• Three melt modes
• Auto boil-out mode
• Less than 750°F flue temperatures at maximum production rate
• ENERGY STAR® certified
• Stainless steel fry tank, 85 - 90 lb capacity
• 90,000 BTU/hr. input
• 1-1/4" full port ball type drain valve
• Stainless steel cabinet
• Set of four 6" adjustable (2 locking) casters
• Twin fry baskets with plastic coated handles
• Hi-limit shut-off
• Electronic matchless ignition
• Includes tank brush and clean-out rod

Filtration System Features:

• Drain valve interlock switch shuts off gas burners automatically when draining oil
• 16 Gauge stainless steel filter pan, 110 lbs frying compound capacity
• 105 sq in Stainless steel mesh filter and fabric envelope
• 1/3 HP motor and pump circulates frying compound at 8 gallons per minute
• One touch push button switch to engage pump and motor
• High temperature discard hose

Product Dimensions:

• Width: 21 Inches
• Depth: 34.4 Inches
• Height: 47.1 Inches

Vulcan Warranty:

1 year limited parts and labor, 10 year limited fryer tank
