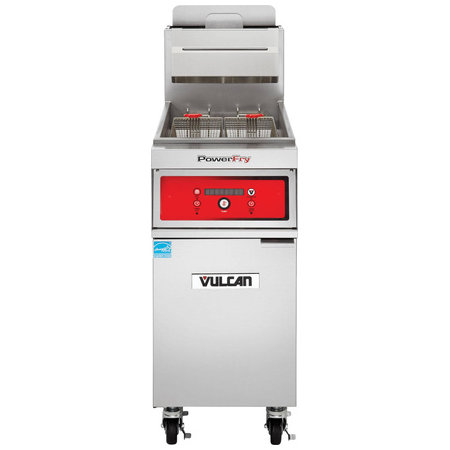

Vulcan 1TR45DF-2

Model shown 2TR85DF. Model may differ from image shown. Some accessories may not be included.

Vulcan 1TR45DF-2 image 0Vulcan 1TR45DF-2 image 1Vulcan 1TR45DF-2 image 2

Vulcan 1TR45DF-2, 70,000 Btu Propane Gas Free Standing Fryer with Filtration, 45 Lb, TR Series

Retail Price:$18,956.00 /ea

Free Shipping

Add Upgraded Warranty Coverage from CPS Warranty Logo
Choose an Upgraded Warranty
Original Warranty Only.

* Lead times vary based on manufacturer stock. Once your order has been processed, we will provide an estimated ship date.

Since this item is not be normally stocked in our warehouse, it may be shipped directly to you from the manufacturer or brought into our warehouse with our next stock order. As soon as the manufacturer provides us with your estimated shipping date, we will let you know. If you need your item by a certain date, please contact us before placing your order or leave a note at the checkout page, letting us know when you need it.

Recommended for this item

Vulcan 1TR45DF-2 Overview

Fryer Features:

  • Accurate temperature control from 200° to 390°F with digital display
    • Fast recovery - cook with compensating time or actual time
    • Electronic ignition
    • Digital temperatures: Fahrenheit or Celsius
    • Three melt modes
    • Two countdown timers
    • Auto boil-out mode
  • Maintains idle temperature setting with only 4,318 BTU/hr to save energy.
  • Energy saving SoftStart™ ignition system extends oil life while requiring lower BTU’s.
  • Energy Efficient ThreePass™ heat transfer system yielding 60.9% cooking efficiency and 72% Thermal Efficiency. ENERGY STAR® certified.
  • Stainless steel fry tank, 45 - 50 lb. capacity. Includes limited 10 year tank warranty.
  • 1 1⁄4" full port ball type drain valve.
  • Stainless steel cabinet.
  • Set of four 6" adjustable casters (2 locking).
  • Twin fry baskets with plastic coated handles.
  • 70,000 BTU/hr. input.
  • Hi-limit shut-off.
  • Tank brush, stainless steel crumb scoop and clean-out rod.

Filtration System Features:

  • Filter system accommodates maximum of four fryer cabinets
  • Drain valve interlock switch - turns off gas burners automatically when draining oil
  • Stainless steel filter mesh screen filters from 2 sides
  • 1/3 HP Motor and pump circulate frying compound at 8 GPM
  • One touch push button switch to engage pump and motor
  • Tank brush and clean out rod
  • 6" adjustable casters (2 locking)
  • 6' High temperature discard hose

Product Dimensions:

  • Width: 15.5 Inches
  • Depth: 30.16 Inches
  • Height: 36.25 Inches

Vulcan Warranty:

1 year limited parts and labor. 10 year limited tank.

Product Brand

Certifications

Energy Star CertifiedNSF Listed

1TR45DF-2 Resources

Vulcan 1TR45DF-2 Specifications

OEM

OEM Numbers
1TR45DF-2, 1TR45DF

Dimensions

Width
15.5 Inches
Depth
30.16 Inches
Height
36.25 Inches

Details

Energy Star
Yes
Exterior Summary
Stainless Steel
Features
Built-in Filtration System
Fry Baskets
2
Fry Pot Front to Back
14
Fry Pot Left to Right
14
Fry Pots
1
Burner Style
Tube
Fryer Capacity
45 Pounds
Capacity per Fry Pot
45 Pounds
Controls
Digital
Fryers
1
Gas Type
Propane
HP
1/3 HP
Interior
Stainless steel
NSF Listed
Yes
Placement
Floor
Power
Gas
RPM's
1,750
Temperature
200° - 390°F
Total Input BTU / HR
70,000
Weight
230 Pounds
Product Condition
New

Warranty

Manufacturer Warranty All items that include a warranty are based on the manufacturer's warranty policy. Purchasers are subject to working directly with the manufacturer to start & finish the warranty process. Note: Some manufacturers' warranties may not cover products when used in a residential setting. To ensure your intended use is covered, please contact us to verify the warranty terms before purchasing.
1 year limited parts and labor. 10 year limited tank.
