Vulcan 1ER85AF-1

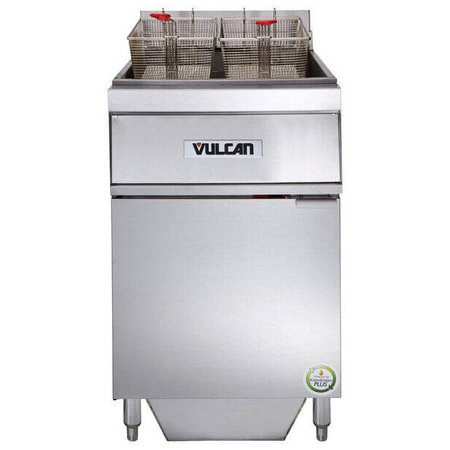

Model shown 1ER85CF. Model may differ from image shown. Some accessories may not be included.

Vulcan 1ER85AF-1 image 0Vulcan 1ER85AF-1 image 1Vulcan 1ER85AF-1 image 2Vulcan 1ER85AF-1 image 3

Vulcan 1ER85AF-1, 24,000 Watt Electric Free Standing Fryer with Filtration, 85 Lb, ER Series

Retail Price:$21,191.00Ā /ea

Free Shipping

Add Upgraded Warranty Coverage from CPS Warranty Logo
Choose an Upgraded Warranty
Original Warranty Only.

* Lead times vary based on manufacturer stock. Once your order has been processed, we will provide an estimated ship date.

Since this item is not be normally stocked in our warehouse, it may be shipped directly to you from the manufacturer or brought into our warehouse with our next stock order. As soon as the manufacturer provides us with your estimated shipping date, we will let you know. If you need your item by a certain date, please contact us before placing your order or leave a note at the checkout page, letting us know when you need it.

Vulcan 1ER85AF-1 Overview

Fryer Features:

  • Stainless steel front and sides
  • Four 6" adjustable legs
  • 16 gauge stainless steel fry tank
  • 1 1/4" Full port ball type drain valve
  • 24 kW low watt density ribbon-style heating elements
  • Multiple fat melt modes
  • High limit control
  • Twin fry baskets with plastic coated handles
  • Solid state analog knob control
    • Accurate temperature control 200Ā° to 390Ā°F within Ā±2Ā°
    • Multiple fat melt modes, fast recovery

Filtration System Features:

  • Boil out bypass easily removes boil out solution from fry tank without contact of drain manifold, filter pan, or motor/pump
  • Drain valve interlock switch shuts off heating elements when drain valve is opened
  • 18 Gauge stainless steel filter pan, 100 lbs frying compound capacity
  • Paperless stainless steel 2-sided filter area. Microfiltration fabric envelope filters out particulate down to 0.5 microns
  • 1/3 HP motor and pump circulates frying compound at 8 gallons per minute
  • One-touch push button switch to engage pump and motor
  • Tank brush and clean out rod included

Product Dimensions:

  • Width: 21 Inches
  • Depth: 34.38 Inches
  • Height: 39.43 Inches

Vulcan Warranty:

1 year limited parts and labor. 10 year limited on fry tank.

Product Brand

Certifications

Energy Star CertifiedNSF Listed

1ER85AF-1 Resources

Vulcan 1ER85AF-1 Specifications

Dimensions

Width
21 Inches
Depth
34.38 Inches
Height
39.43 Inches

Details

Energy Star
Yes
Features
Built-in Filtration System
Fry Baskets
2
Fry Pot Front to Back
18
Fry Pot Left to Right
19.5
Fry Pots
1
Burner Style
Ribbon
Fryer Capacity
85 Pounds
Capacity per Fry Pot
85 Pounds
Controls
Solid State Analog Knob
Fryers
1
HP
1/3 HP
NSF Listed
Yes
Phase
Three Phase
Placement
Floor
Power
Electric
RPM's
1,750
Series
ER Series
Volts
208 Volts
Wattage
24,000 Watts
Weight
195 Pounds
Product Condition
New

Warranty

Manufacturer Warranty
1 year limited parts and labor. 10 year limited on fry tank.
