Jet-Tech 747HH, 40 Rack/Hr Door Type Dishwasher, High Temperature Sanitizing, Single Rack
This item is no longer available for purchase.

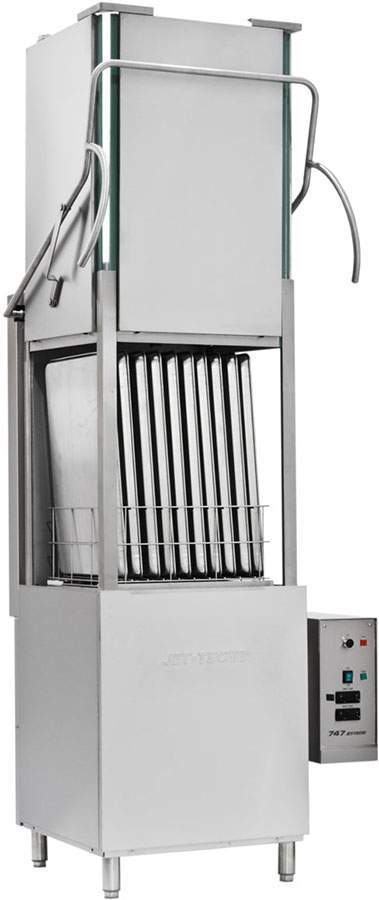

Jet-Tech 747HH Overview
Features:
- Built-in booster heater
- High hood opening facilitates the washing of tall items such as sheet pans
- Completely automatic wash and rinse programs with a wash cycle of 150°F with detergent and rinse cycle of 185°F
- Model 747HH is built with twin wash motor pumps of 1 HP each (total of 2 HP) for greater power and enhanced performance
- Insulated lower cabinet provides for a quieter operation
- Automatic adjustable detergent and rinse additive pumps are provided as standard equipment
- Large capacity opening permits the washing of sheet pans and mixing bowls of up to 26" high by 20" wide
- Door activated automatic start and stop mechanism for ease and convenience
- Designed to be installed either in a corner or straight pass-thru setup
- Body, external housing, wash tank, adjustable bullet feet, and all chassis components are constructed of 16 gauge type 304 polished stainless steel
- Individual wash pumps for upper and lower washing assemblies
- Fully enclosed lower cabinet provides a quieter operation
- Safety micro-switch on doors to interrupt wash pumps
- Three way sliding counter balanced doors assembled with heavy duty stainless steel bushings and door handle for ease of operation and durability
- Independently operated heating elements alternating between the booster and wash reduces overall energy costs
- Automatic filling and regulation of the water level of the tank
- Wash tank fabricated with an integrated set of perforated stainless steel scrap filters which are easily removed for quick cleaning and proper maintenance
- Two individual scrap filters protect the twin wash motor pumps
- Lower front and side panels are easily removed for technical access
- Individual digital gauges for both wash and rinse temperatures
- Includes one 20" x 20" stainless steel 10-place sheet pan rack and one 20" x 20" peg rack for dishes
Product Dimensions:
- Width: 42.5 Inches
- Depth: 29 Inches
- Height: 98.5 Inches
Jet-Tech Warranty:
1 year limited warranty.
Jet-Tech 747HH Specifications
Dimensions
Width
42.5 Inches
Depth
29 Inches
Height
98.5 Inches
Details
Application
Standard Dishwashers
Application
Pot & Pan Dishwashers
Booster Heater Included
Yes
CE Certified
Yes
Clean Type
High Temperature
Dishwasher Height
Tall
Dishwasher Style
Straight-Thru
Drain Pump Included
No
Energy Star
Yes
Exterior Summary
Stainless Steel
Flow Rate
0.83 GPM
Phase
Single Phase
Phase
Three Phase
Racks per hour
40
Tank Heat
Electric
Type
Single Rack
UL Listed
Yes
Volts
208/240 Volts
Weight
352 Pounds
Product Condition
New
Warranty
Manufacturer Warranty All items that include a warranty are based on the manufacturer's warranty policy. Purchasers are subject to working directly with the manufacturer to start & finish the warranty process. Note: Some manufacturers' warranties may not cover products when used in a residential setting. To ensure your intended use is covered, please contact us to verify the warranty terms before purchasing.
1 year limited warranty.
