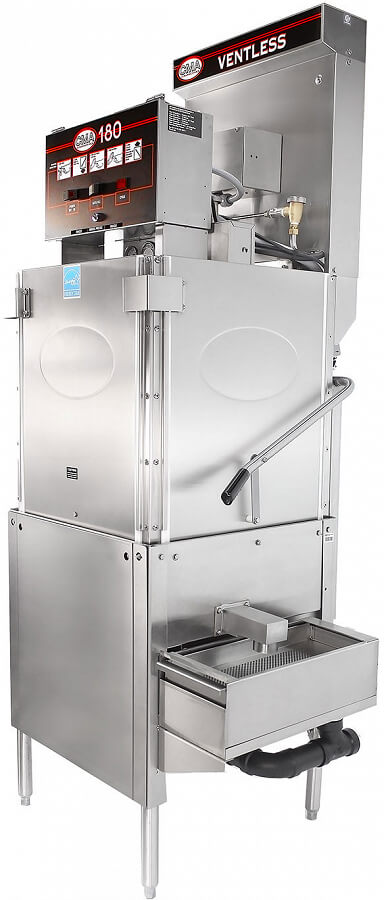

CMA Dishmachines CMA-180-VL TALL, 40 Rack/Hr, Ventless 3 Door Dishwasher, High Temperature Sanitizing, Single Rack

$15,505.00 /ea

-OR-
Business financing:
$372.12 /mo
Click to apply

Free Shipping

Call us at 1-800-550-0706 for more info.
Options and Accessories

CMA Dishmachines CMA-180-VL TALL Overview

Features & Benefits:

  • The CMA-180-VL TALL replaces the need for an independent vent hood.
  • Final Rinse Valve receives cold water (41-65°F) that is processed through a "Heat Recovery System" providing nearly cost-free heating capabilities for water supplied to the Booster Heater, which reduces the heat recovery time for the Booster Heater.
  • Heat recovery system captures water vapor from the wash & rinse cycle, and condenses it to heat the incoming cold water & evacuate the steam from the wash chamber.
  • Minimum 90-second cycle. (60 second wash/rinse & 30 second steam evacuation)
  • 40 racks per hour (based on 90-second cycle).
  • Door-actuated start.
  • Safe-T-Temp feature assures 180°F sanitizing rinse every cycle.
  • 12kW electrical booster heater.
  • Booster-safety thermostat.
  • 6kW wash tank heater.
  • Low max. 0.89 US gallons of water usage per rack.
  • Fully automatic cycle for easy operation.
  • Water level safety control.
  • Maximum clearance for dishes is 28".
  • All Stainless Steel construction.
  • Wash tank screens, which filter recirculating wash water, prevent soil from entering spray arms.
  • 3-door feature for straight or corner applications.
  • Automatic heat exchange condenser wash-down feature.
  • Rinse PRV supplied (Pressure Regulating Valve).
  • Field convertible from three phase to single phase.
  • Door Safety Interlock System (DSI) assures that doors remain locked throughout the entire cycle allowing the HR system to evacuate the vapor from the machine.

Product Dimensions:

  • Width: 25.5 Inches
  • Depth: 29 Inches
  • Height: 95.3 Inches

CMA Dishmachines Warranty:

1 year parts and labor

Product Brand

Certifications

Made in USAEnergy Star CertifiedNSF ListedUL Listed

CMA-180-VL TALL Resources

CMA Dishmachines CMA-180-VL TALL Specifications

OEM

OEM Numbers
CMA-180-VL TALL, 01633.03

Dimensions

Width
25.5 Inches
Depth
29 Inches
Height
95.3 Inches

Details

Exterior Summary
Stainless Steel
Weight
625 Pounds
Phase
Single Phase
Racks per hour
40
Volts
208 Volts
Flow Rate
52 GPM
Clean Type
High Temperature
Phase
Three Phase
Booster Heater Included
Yes
Drain Pump Included
No
Energy Star
Yes
Tank Heat
Electric
Volts
240 Volts
NSF Listed
Yes
UL Listed
Yes
Application
Standard Dishwashers
Dishwasher Height
Tall
Dishwasher Style
Corner / Straight-Thru
Type
Single Rack
Features
Ventless
Product Condition
New

Warranty

Manufacturer Warranty
1 year parts and labor
