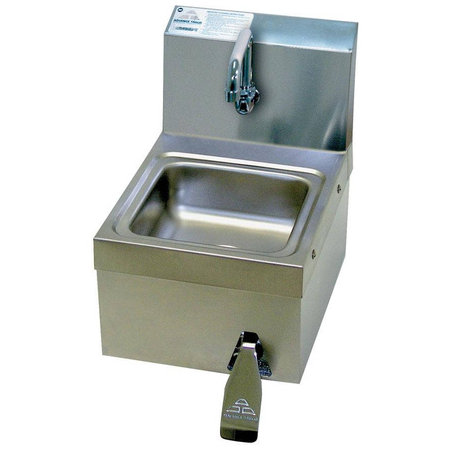

Advance Tabco 7-PS-63, Hand Sink w/ Hands Free Knee Valve Splash Mount Faucet

Model Specifics: Includes Single Knee Valve (With Built-In Mixing Valve), K-123 Splash Mounted Extended "D" Spout, 2" Drain w/ Flat Top Strainer, Wall Bracket

Features:

• One piece Deep Drawn sink bowl design.
• Keyhole wall mount bracket.
• Stainless steel basket drain 1-1/2" IPS.
  • Knee valve operated faucet provides true hands-free operation.
• All sink bowls have a large liberal radii with a minimum dimension of 2" and are rectangular in design for increased capacity.
• Apron conceals plumbing on all three sides.
• “Hands Free" splash mounted gooseneck faucet furnished with aerator.
• Construction:
  • All TIG welded.
  • Welded areas blended to match adjacent surfaces and to a satin finish.
  • Die formed Countertop Edge with a 3/8" No-Drip offset.
  • One sheet of stainless steel - No Seams.
• Material:
  • Heavy gauge type 304 series stainless steel.
  • Wall mounting bracket is galvanized steel and of offset design.
  • All fittings are brass / chrome plated unless otherwise indicated.
• Mechanical:
  • Spout supply is 1/2" IPS male thread.
  • Knee Valve is barrel type and is activated by pedal.
  • (Contractor on site must connect faucet to knee operated valves.)

Product Dimensions:

• Width (Inches - Front to Back): 16 Inches
• Length (Inches - Left to Right): 12.25 Inches
• Height: 13 Inches
