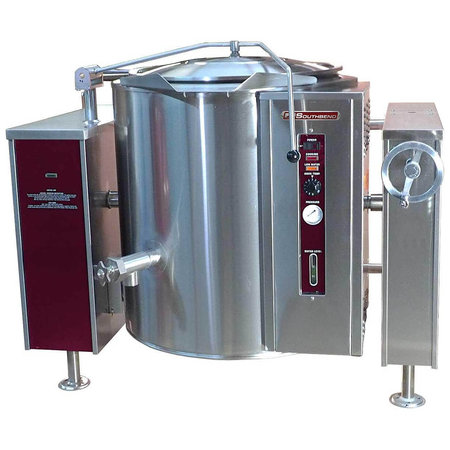

Image for reference only. Actual model varies and may not include accessories shown.
Southbend KTLG-20, 20 Gallon Freestanding Gas 2/3 Jacket Steam Kettle, Tilting, 80,000 Btu
Retail Price:$28,472.00 /ea
Free Shipping
Call us at 1-800-550-0706 for more info.
Southbend KTLG-20 Overview
Features:
- Exterior constructed of type 304 stainless steel with a welded satin finish
- One piece 316 stainless steel liner for high acid content products
- Double wall kettle interior will form a steam jacket around the lower 2/3 of the kettle
- Bottom of kettle is hemispherical for superior heat distribution
- Tilt mechanism allows the kettle to tilt past 90° for complete emptying
- Kettle pivots on trunions connected to the tilt mechanism and control console
- Standard controls include direct immersion thermostat, water sight glass, cooking light, pressure gauge, and electronic ignition with indicator light
- Safety features include low water cut off, pressure relief valve, and pressure switch
- Drip-proof controls in stainless steel housing
- 165° to 275°F (74° to 135°C) temperature range
- 1-5/8" Diameter legs with flanged feet for securing to the floor
- Electronic ignition
- 20 Gallon capacity
- Includes three piece split faucet bracket
- ASME Code stamped and National Board registered
- ACA/CGA design certified, NSF approved
Product Dimensions:
- Width: 48.1 Inches
- Depth: 40.5 Inches
- Height: 40.1 Inches
Southbend Warranty:
1 Year Parts & Labor
Southbend KTLG-20 Specifications
Dimensions
Width
48.1 Inches
Depth
40.5 Inches
Height
40.1 Inches
Details
CSA Blue Star Certified
Yes
CSA Certified
Yes
Capacity
20 Gallons
Exterior Summary
Stainless Steel
Features
Manual Tilt
Gas Type
Natural
Gas Type
Propane
Kettle Jacket
Partial Jacket
NSF Listed
Yes
PSI
50 PSI
Phase
Single Phase
Placement
Free Standing
Power
Gas
Total Input BTU / HR
80,000
Type
Tilting
Volts
120 Volts
Weight
700 Pounds
Product Condition
New
Warranty
Manufacturer Warranty All items that include a warranty are based on the manufacturer's warranty policy. Purchasers are subject to working directly with the manufacturer to start & finish the warranty process. Note: Some manufacturers' warranties may not cover products when used in a residential setting. To ensure your intended use is covered, please contact us to verify the warranty terms before purchasing.
1 Year Parts & Labor
