Southbend KDMTL-60-2

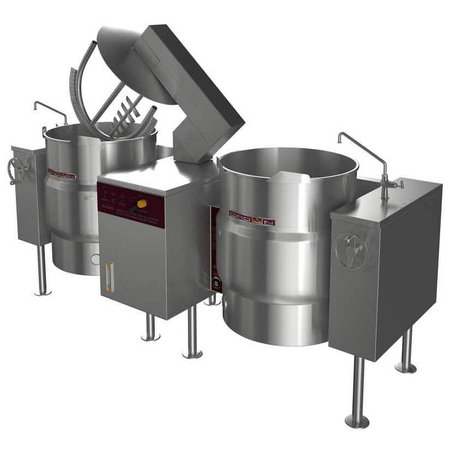

Image for reference only. Actual model may vary and may not include accessories shown.

Southbend KDMTL-60-2, (2) 60 Gallon Freestanding Direct Steam 2/3 Jacket Kettles w/ Mixer, Tilting

Free Shipping

Contact us for pricing.
Options and Accessories

* Lead times vary based on manufacturer stock. Once your order has been processed, we will provide an estimated ship date.

Southbend KDMTL-60-2 Overview

Features:

  • Constructed of type 304 welded stainless steel with satin finish
  • Double wall kettle interiors form a steam jacket around the lower 2/3 of the kettles
  • 316 Stainless steel liners for high acid content products
  • Hemispheric kettle bottoms provide superior heat distribution
  • Stainless steel pipe tubular legs are fitted with flanged feet with 4 hours for securing the unit to the floor
  • Sealed stainless steel tilt mechanism allows the kettle to tilt forward 90° for complete emptying and is self locking for positive stop action
  • Variable speed mixer with 5 HP electric motor driving a hydraulic pump
  • Stainless steel scraper/agitator and secondary high speed mixer
  • 10 gauge stainless steel bridge contains two heavy duty hydraulic motors to drive the agitators
  • Power tilt bridge swings 140° out of the way for kettle tilting or cleaning
  • Front mounted controls with main power switch, mixer lift switch, and variable speed control
  • Operated with direct steam at a minimum of 5 PSI (34 kPa) and a maximum of 30 PSI (206 kPa)
  • Two (2) kettles with 60 gallon capacity each

Product Dimensions:

  • Width: 108 Inches
  • Depth: 38.25 Inches
  • Height: 58.5 Inches

Southbend Warranty:

1 Year Parts & Labor

Product Brand

Certifications

NSF ListedCSA Certified

KDMTL-60-2 Resources

Southbend KDMTL-60-2 Specifications

Dimensions

Width
108 Inches
Depth
38.25 Inches
Height
58.5 Inches

Details

CSA Certified
Yes
Capacity
120 Gallons
Category
Kettle/Stand Assemblies
Exterior Summary
Stainless Steel
Features
Mixer
Kettle Jacket
Partial Jacket
NSF Listed
Yes
PSI
5 - 30 PSI
Phase
Three Phase
Placement
Free Standing
Power
Direct Steam
Type
Tilting
Volts
208 Volts
Volts
240 Volts
Weight
1,440 Pounds
Product Condition
New

Warranty

Manufacturer Warranty
1 Year Parts & Labor
