Image for reference only. Actual model may vary and may not include accessories shown.

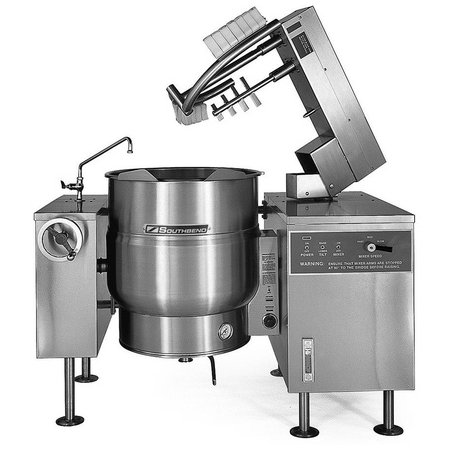

Southbend KDMTL-60, 60 Gallon Freestanding Direct Steam 2/3 Jacket Kettle w/ Mixer, Tilting
Retail Price:$82,609.00Ā /ea
Free Shipping
Southbend KDMTL-60 Overview
Features:
- Constructed of type 304 welded stainless steel with satin finish
- Double wall kettle interior forms a steam jacket around the lower 2/3 of the kettle
- 316 Stainless steel liner for high acid content products
- Hemispheric kettle bottom provides superior heat distribution
- Stainless steel pipe tubular legs are fitted with flanged feet with 4 hours for securing the unit to the floor
- Sealed stainless steel tilt mechanism allows the kettle to tilt forward 90Ā° for complete emptying and is self locking for positive stop action
- Variable speed mixer with 5 HP electric motor driving a hydraulic pump
- Stainless steel scraper/agitator and secondary high speed mixer
- 10 gauge stainless steel bridge contains two heavy duty hydraulic motors to drive the agitators
- Power tilt bridge swings 140Ā° out of the way for kettle tilting or cleaning
- Front mounted controls with main power switch, mixer lift switch, and variable speed control
- Operated with direct steam at a minimum of 5 PSI (34 kPa) and a maximum of 30 PSI (206 kPa)
- 60 Gallon capacity
Product Dimensions:
- Width: 65 Inches
- Depth: 38.9 Inches
- Height: 58.5 Inches
Southbend Warranty:
1 Year Parts & Labor
Southbend KDMTL-60 Specifications
Dimensions
Width
65 Inches
Depth
38.9 Inches
Height
58.5 Inches
Details
CSA Certified
Yes
Capacity
60 Gallons
Exterior Summary
Stainless Steel
Features
Mixer
Kettle Jacket
Partial Jacket
NSF Listed
Yes
PSI
5 - 30 PSI
Phase
Three Phase
Placement
Free Standing
Power
Direct Steam
Type
Tilting
Volts
208 Volts
Volts
240 Volts
Weight
730 Pounds
Product Condition
New
Warranty
Manufacturer Warranty All items that include a warranty are based on the manufacturer's warranty policy. Purchasers are subject to working directly with the manufacturer to start & finish the warranty process. Note: Some manufacturers' warranties may not cover products when used in a residential setting. To ensure your intended use is covered, please contact us to verify the warranty terms before purchasing.
1 Year Parts & Labor
