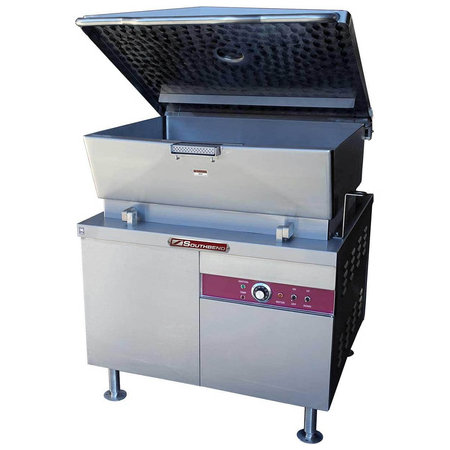

30 Gallon model shown. Actual model varies.
Southbend BGMTS-40, 40 Gallon Gas Freestanding Tilt Skillet / Braising Pan w/ Cabinet Base, 100,000 Btu
Retail Price:$35,873.00 /ea
Free Shipping
Call us at 1-800-550-0706 for more info.
Recommended for this item
Southbend BGMTS-40 Overview
Features:
- Spring assisted, hinged, stainless steel cover complete with full width handle, no-drip condensate guide and vent port with swing cover
- Pan body has a sloped front and is front hinged for tilting and easy pour control and comes with a removable pour strainer
- Formed from 10 gauge stainless steel with a #4 finish exterior and polished interior with etched gallon markings and coved corners for easy cleaning
- Cooking surface with 3/4" thick triple-ply construction with 3/8" thick aluminum core to ensure even heat distribution
- Heavy duty, welded, angle constructed frame fitted with 6" (152 mm) stainless steel legs with adjustable bullet feet on the front and flange feet on the rear for securing to the floor
- Enclosed with #4 finished type 304 stainless steel with removable side panel and two stainless steel front cabinet doors
- All controls are mounted in the cabinet base which include a solid state thermostat, temperature light, tilt switch, high limit thermostat and hydraulic lift system powered by a 1/2 HP electrical motor for smooth and precise tilting action
- Cooking temperatures are between 100°F - 450°F (38°C - 232°C)
- Gas supply to burners automatically shuts off when pan is tilted
- 40 Gallon capacity
- AGA/CGA and NSF certified
Product Dimensions:
- Width: 48 Inches
- Depth: 42.6 Inches
- Height: 40.5 Inches
Southbend Warranty:
1 year limited parts and labor
Southbend BGMTS-40 Specifications
Dimensions
Width
48 Inches
Depth
42.6 Inches
Height
40.5 Inches
Details
CSA Blue Star Certified
Yes
CSA Certified
Yes
Capacity
40 Gallons
Cover Type
Hinged
Exterior Summary
Stainless Steel
Gas Type
Propane
Gas Type
Natural
NSF Listed
Yes
Phase
Single Phase
Placement
Free Standing
Power
Gas
Tilt Style
Power Tilt
Total Input BTU / HR
100,000
Volts
115 Volts
Weight
825 Pounds
Product Condition
New
Warranty
Manufacturer Warranty All items that include a warranty are based on the manufacturer's warranty policy. Purchasers are subject to working directly with the manufacturer to start & finish the warranty process. Note: Some manufacturers' warranties may not cover products when used in a residential setting. To ensure your intended use is covered, please contact us to verify the warranty terms before purchasing.
1 year limited parts and labor
