Crown GS-40

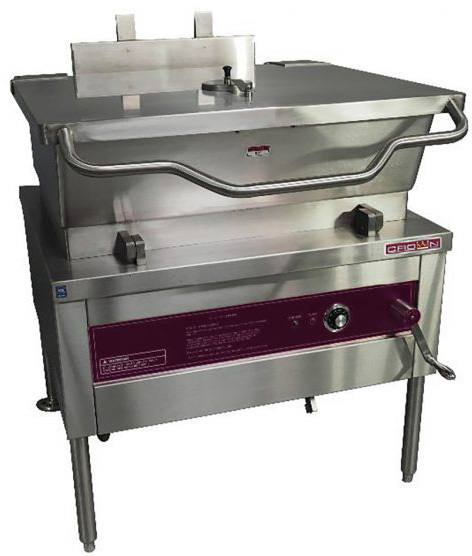

Crown GS-40, 40 Gallon Gas Freestanding Tilt Skillet / Braising Pan, 120,000 Btu

Retail Price:$25,782.00 /ea

Free Shipping

Call us at 1-800-550-0706 for more info.
Options and Accessories

* Lead times vary based on manufacturer stock. Once your order has been processed, we will provide an estimated ship date.

Since this item is not be normally stocked in our warehouse, it may be shipped directly to you from the manufacturer or brought into our warehouse with our next stock order. As soon as the manufacturer provides us with your estimated shipping date, we will let you know. If you need your item by a certain date, please contact us before placing your order or leave a note at the checkout page, letting us know when you need it.

Recommended for this item

Crown GS-40 Overview


  • Gas fired skillet with manual tilt
  • AGA/CGA and NSF certified.
  • Spring assisted stainless steel cover, with full width handle, no drip condensate guide and vent port with swing cover.
  • Pan has a sloped front and be front hinged for easy tilting pour control and comes complete with a removable pour strainer.
  • 10 gauge stainless steel pan with a #4 finish exterior and polished interior with coved corners for easy cleaning.
  • Cooking surface is 5/8" thick stainless steel clad plate ensuring even heat distribution over entire cooking surface.
  • Stainless steel atmospheric burners with direct spark ignition.
  • Heavy duty welded frame with stainless steel exterior supported by an all welded 1-5/8" (41 mm) stainless steel pipe frame with adjustable bullet feet and rear legs fitted with flange adjustable feet for securing to the floor.
  • Permanently lubricated, self-contained gear box tilt mechanism to allow the pan to tilt forward for complete emptying of contents.
  • The controls enclosure is designed to meet NEMA-2 and provide a degree of protection against dripping and light splashing and includes a solid state thermostat with OFF position and a range of 100°F - 450°F (38°C - 232°C) a thermostat indicator light, pan tilt switch that shuts burners off if tilted more than 5°, and high temperature cut-off set at 500°F (260°C).

Product Dimensions:

  • Width: 48 Inches
  • Depth: 39.88 Inches
  • Height: 40 Inches

Crown Warranty:

1 year limited parts and labor

Product Brand


Made in USA

GS-40 Resources

Crown GS-40 Specifications


OEM Numbers
GS-40, Southbend BGLM-40, Blodgett BLG-40G


48 Inches
39.88 Inches
40 Inches


40 Gallons
Cover Type
Exterior Summary
Stainless Steel
Gas Type
Gas Type
Single Phase
Free Standing
Tilt Style
Manual Tilt
Total Input BTU / HR
120 Volts
725 Pounds
Product Condition


Manufacturer Warranty All items that include a warranty are based on the manufacturer's warranty policy. Purchasers are subject to working directly with the manufacturer to start & finish the warranty process. Note: Some manufacturers' warranties may not cover products when used in a residential setting. To ensure your intended use is covered, please contact us to verify the warranty terms before purchasing.
1 year limited parts and labor
