Crown GS-30
Crown GS-30

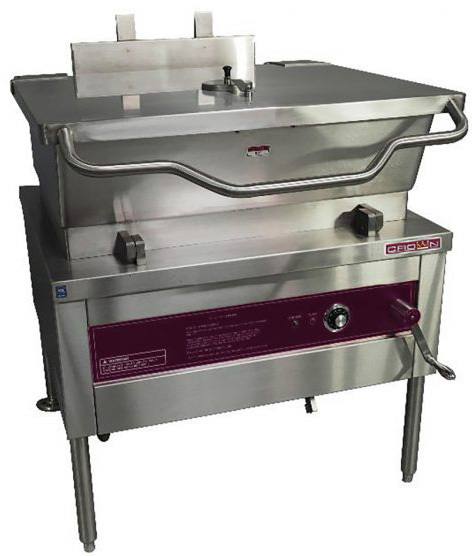

Crown GS-30, 30 Gallon Gas Freestanding Tilt Skillet / Braising Pan, 100,000 Btu

Retail Price:$20,270.00 /ea

Free Shipping

Call us at 1-800-550-0706 for more info.
Options and Accessories
From $1875/month withcredit key logoPrequalify Now!
buy now text

Recommended for this item

Crown GS-30 Overview

Features:

  • Gas fired skillet with manual tilt
  • AGA/CGA and NSF certified
  • Spring assisted stainless steel cover, with full width handle, no drip condensate guide and vent port with swing cover
  • Pan with a sloped front and be front hinged for easy tilting pour control and comes complete with a removable pour strainer.
  • 10 gauge stainless steel pan with a #4 finish exterior and polished interior with coved corners for easy cleaning.
  • Cooking surface is 5/8" thick stainless steel clad plate ensuring even heat distribution over entire cooking surface.
  • Stainless steel atmospheric burners with direct spark ignition.
  • Heavy duty welded frame with stainless steel exterior supported by an all welded 1-5/8" (41 mm) stainless steel pipe frame with adjustable bullet feet and rear legs fitted with flange adjustable feet for securing to the floor.
  • Permanently lubricated, self-contained gear box tilt mechanism to allow the pan to tilt forward for complete emptying of contents.
  • Controls enclosure is designed to meet NEMA-2 and provide a degree of protection against dripping and light splashing and includes a solid state thermostat with OFF position and a range of 100°F - 450°F (38°C - 232°C) a thermostat indicator light, pan tilt switch that shuts burners off if tilted more than 5°, and high temperature cut-off set at 500°F (260°C).

Product Dimensions:

  • Width: 36 Inches
  • Depth: 38.88 Inches
  • Height: 40 Inches

Crown Warranty:

1 year limited parts and labor

Since this item is not stocked in our warehouse, we can not guarantee availability, transit times, etc. If you need this item within a certain timeframe, please contact us before placing your order so that we can verify current stocking levels for you.

Product Brand

Certifications

Made in USA

GS-30 Resources

Crown GS-30 Specifications

OEM

OEM Numbers
GS-30, Southbend BGLM-30, Blodgett BLG-30G

Dimensions

Width
36 Inches
Depth
38.88 Inches
Height
40 Inches

Details

Capacity
30 Gallons
Cover Type
Hinged
Exterior Summary
Stainless Steel
Gas Type
Propane
Gas Type
Natural
Phase
Single Phase
Placement
Free Standing
Power
Gas
Tilt Style
Manual Tilt
Total Input BTU / HR
100,000
Volts
120 Volts
Weight
600 Pounds
Product Condition
New

Warranty

Manufacturer Warranty
1 year limited parts and labor
