Crown GMTS-40

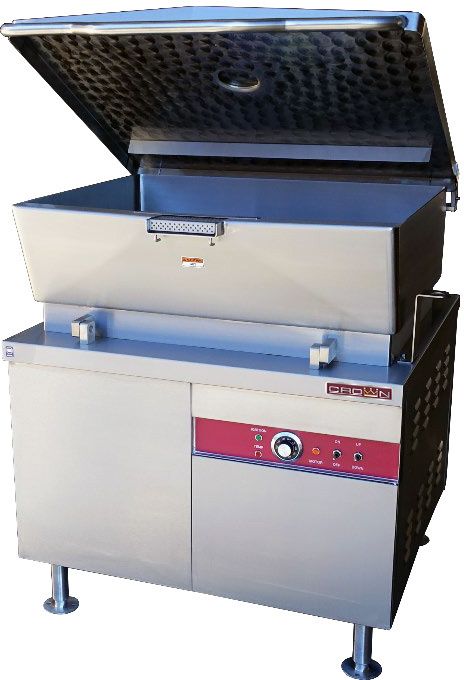

Crown GMTS-40, 40 Gallon Gas Freestanding Tilt Skillet / Braising Pan w/ Cabinet Base, 100,000 Btu

Retail Price:$35,782.00 /ea

Free Shipping

Call us at 1-800-550-0706 for more info.
Options and Accessories

* Lead times vary based on manufacturer stock. Once your order has been processed, we will provide an estimated ship date.

Since this item is not be normally stocked in our warehouse, it may be shipped directly to you from the manufacturer or brought into our warehouse with our next stock order. As soon as the manufacturer provides us with your estimated shipping date, we will let you know. If you need your item by a certain date, please contact us before placing your order or leave a note at the checkout page, letting us know when you need it.

Recommended for this item

Crown GMTS-40 Overview


  • Gas fired hydraulic tilting skillet
  • AGA/CGA and NSF certified.
  • Spring assisted hinged stainless steel cover, complete with handle and a no drip condensate guide.
  • Pan body has a sloped front, be front hinged for tilting and easy pour control and comes complete with removable pour lip strainer.
  • 10 gauge stainless steel pan with a #4 finish exterior and polished interior with coved corners for easy cleaning.
  • Cooking surface is 5/8" thick stainless steel clad cooking plate for even heat distribution over entire cooking surface.
  • Heavy duty welded angle constructed frame fitted with 6" (152 mm) stainless steel legs with adjustable bullet feet on the front and flanged, adjustable feet on the rear for securing to the floor.
  • Enclosed with #4 finish type 304 stainless steel with removable side panels and two stainless steel front cabinet doors.
  • All controls are mounted in the cabinet base which include a solid state thermostat, temperature light, tilt switch, electronic ignition, tilt safety switch and hydraulic lift system powered by a 1/2 HP electric motor for smooth and precise tilting action.
  • The high limit thermostat is located on the pan bottom.
  • Cooking temperatures are between 100°F and 450°F (38°C and 232°C).
  • Gas supply to the burners automatically shuts off when the pan is tilted.

Product Dimensions:

  • Width: 44 Inches
  • Depth: 39.5 Inches
  • Height: 40.25 Inches

Crown Warranty:

1 year limited parts and labor

Product Brand


Made in USA

GMTS-40 Resources

Crown GMTS-40 Specifications


OEM Numbers
GMTS-40, Southbend BGMTS-40, Blodgett BCH-40G


44 Inches
39.5 Inches
40.25 Inches


40 Gallons
Cover Type
Exterior Summary
Stainless Steel
Gas Type
Gas Type
Single Phase
Free Standing
Tilt Style
Power Tilt
Total Input BTU / HR
115 Volts
825 Pounds
Product Condition


Manufacturer Warranty All items that include a warranty are based on the manufacturer's warranty policy. Purchasers are subject to working directly with the manufacturer to start & finish the warranty process. Note: Some manufacturers' warranties may not cover products when used in a residential setting. To ensure your intended use is covered, please contact us to verify the warranty terms before purchasing.
1 year limited parts and labor
