Crown GCX-16

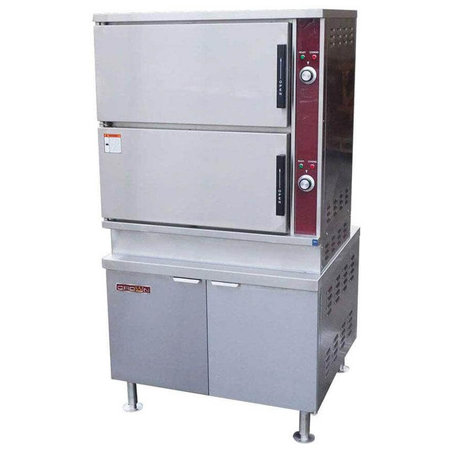

Crown GCX-16, 16 Pan Free Standing Gas Convection Steamer, 300,000 Btu

Retail Price:$38,500.00Ā /ea

Free Shipping

Call us at 1-800-550-0706 for more info.
Options and Accessories

* Lead times vary based on manufacturer stock. Once your order has been processed, we will provide an estimated ship date.

Since this item is not be normally stocked in our warehouse, it may be shipped directly to you from the manufacturer or brought into our warehouse with our next stock order. As soon as the manufacturer provides us with your estimated shipping date, we will let you know. If you need your item by a certain date, please contact us before placing your order or leave a note at the checkout page, letting us know when you need it.

Crown GCX-16 Overview

Features:

  • Type 304 stainless steel exterior with a #4 satin finish
  • Cooking chambers are one piece, all welded, type 316 stainless steel
  • Chambers are fully insulated and include removable stainless steel pan supports
  • Heavy duty door with a stainless steel liner and full perimeter gasket seal
  • Outer liner on door is one piece, all welded stainless steel with a positive lock and seal mechanism with spring release
  • Stainless steel drip trough integrally connected to the drain collects condensate when the doors are opened
  • Steam flow to the cooking chamber is cut off when the door is opened and reactivated when the door is closed
  • Standard boiler controls include: Automatic water level control, pressure gauge, water gauge glass, operating pressure control with pressure safety control, safety relief valve, and cathodic protector
  • Unit comes standard with a split water line
  • 60 minute mechanical timer with alarm
  • Cabinet base w/ electric boiler is a full perimeter angled frame with reinforced boiler mountings
  • 6" Stainless steel legs with adjustable bullet feet on the front and flanged rear feet for securing to the floor
  • ASME code stamped and National Board registered
  • AGA, CGA, and NSF certified
  • Includes water filter system

Product Dimensions:

  • Width: 36 Inches
  • Depth: 33 Inches
  • Height: 62 Inches

Crown Warranty:

1 Year Limited

Product Brand

Certifications

NSF ListedCSA CertifiedCSA Blue Star Certified

GCX-16 Resources

Crown GCX-16 Specifications

OEM

OEM Numbers
GCX-16, Blodgett SB-16G

Dimensions

Width
36 Inches
Depth
33 Inches
Height
62 Inches

Details

CSA Blue Star Certified
Yes
CSA Certified
Yes
Controls
Manual Controls
Exterior Summary
Stainless Steel
Gas Type
Natural
Gas Type
Propane
Interior
Stainless steel
NSF Listed
Yes
Number of Compartments
2
Pan Capacity
16 Pan
Placement
Free Standing
Power
Gas
Steam Source
Boiler
Total Input BTU / HR
300,000
Type
Convection Steamers
Weight
990 Pounds
Product Condition
New

Warranty

Manufacturer Warranty All items that include a warranty are based on the manufacturer's warranty policy. Purchasers are subject to working directly with the manufacturer to start & finish the warranty process. Note: Some manufacturers' warranties may not cover products when used in a residential setting. To ensure your intended use is covered, please contact us to verify the warranty terms before purchasing.
1 Year Limited
