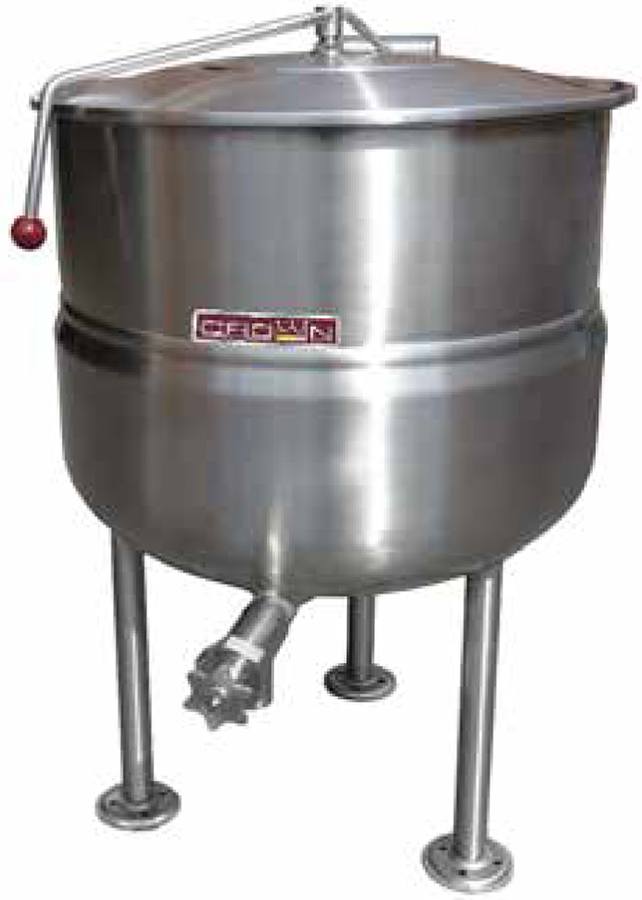

Crown DL-80, 80 Gallon Direct Steam 2/3 Jacket Kettle, Free Standing, Stationary
This item is no longer available for purchase.Check out the replacement below.
Crown DL-80 Overview
Features:
- Constructed of 304 stainless steel with welded satin finish
- 316 stainless steel liner for high acid content products
- Removable operating handle with heat proof knob can be mounted on the left or right side of each kettle
- Double wall kettle interior will form a steam jacket around the lower 2/3 of the kettle
- Steam control kit (line strainer, steam inlet globe valve, steam trap, check valve, spring assisted cover and a 2” draw-off valve with strainer.)
- Tri-leg mounting frame of stainless steel pipe conceals the steam piping
- Flange foot with four holes attached to each leg to secure the unit to the floor
- Includes spring assist hinged stainless steel cover
- 5-30 PSI operating range
Product Dimensions:
- Width: 34.75 Inches
- Depth: 37 Inches
- Height: 40.5 Inches
Crown Warranty:
1 Year Parts & Labor
Crown DL-80 Specifications
OEM
OEM Numbers
DL-80, Market Forge F-80L, Southbend KDLS-80, Blodgett KLS-80DS
Dimensions
Width
34.75 Inches
Depth
37 Inches
Height
40.5 Inches
Details
Capacity
80 Gallons
Exterior Summary
Stainless Steel
Input BHP
4 BHP
Kettle Jacket
Partial Jacket
NSF Listed
Yes
PSI
5 - 30 PSI
Power
Direct Steam
Type
Stationary
Weight
205 Pounds
Product Condition
New
Warranty
Manufacturer Warranty All items that include a warranty are based on the manufacturer's warranty policy. Purchasers are subject to working directly with the manufacturer to start & finish the warranty process. Note: Some manufacturers' warranties may not cover products when used in a residential setting. To ensure your intended use is covered, please contact us to verify the warranty terms before purchasing.
1 Year Parts & Labor
