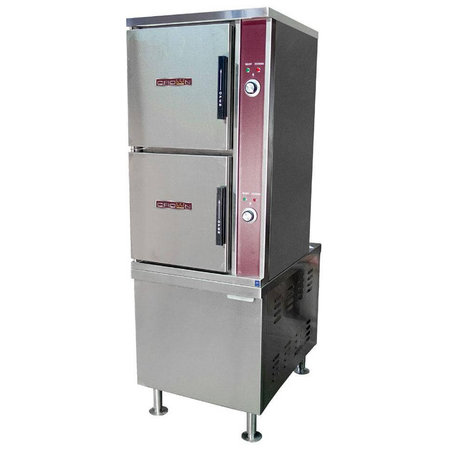

Crown DCX-10-36, 10 Pan Freestanding Direct Steam Convection Steamer w/ 36" Direct Steam Base

Features:

• Mounted on modular cabinet base with a removable drip trough
• 60-Minute load compensating timer with audible alarm (signals end of cooking cycle), constant steam mode
• Each compartment is independently and automatically controlled by setting the cooking time on the 60 minute timer
• Each compartments can hold five 12" x 20" x 1" deep pans, five 12" x 20" x 2.5" deep pans, or three 12" x 20" x 4" deep pans
• Incoming steam must be a minimum of 10 psi with a flow of 80 lbs
• Auto steam shut-off (when door is open during cooking cycle)
• Positive lock and seal mechanism and a stainless steel drip trough connected to a drain to collect condensate when doors are opened
• Full perimeter gasket seal
• 340 stainless steel exterior
• 316 stainless steel cooking chambers with coved corners
• Removable stainless steel pan supports
• Easy open heavy duty door with quick release handle and spring loaded door latches
• 6" stainless steel legs with adjustable flanged feet
• Unit comes standard with split water line, CSD-1 boiler code, "Y" strainer, pressure reducing valve, and automatic blowdown
• Standard boiler controls include automatic water level control, pressure gauge, water gauge glass, operating pressure control, safety relief valve, and cathodic protector
• ASME code stamped and National Board registered, AGA, CGA, and NSF certified

Product Dimensions:

• Width: 36 Inches
• Depth: 33 Inches
• Height: 68.5 Inches

Crown Warranty:

1 Year Limited
