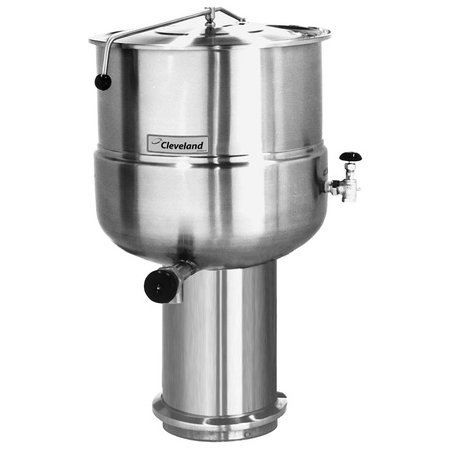

Cleveland Range KDP80, 80 Gallon Freestanding Direct Steam Kettle w/ Pedestal Base, Stationary
This item is no longer available for purchase.
Cleveland Range KDP80 Overview
Model Specifics: 2/3 jacketed kettle.
Features & Benefits:
- Spring-assisted Cover: domed, hinged, one-piece rotatable
- Type 304 Stainless Steel construction, #4 finish on kettle and supports
- 2Ė diameter Tangent Draw-off Valve with Drain Strainer
- 50 psi Steam Jacket Rating on 25 - 100 gal models
- 50 psi chrome plated Safety Valve on 25 - 100 gal models
- 5 - 45 psi operating pressure
- Condensate Drain Valve with insulated handle
- Pedestal support of Type 304 Stainless Steel with .75Ė thick floor plate, (level adjustable for sloping floors), comes with Stainless Steel Collar for sealing
- Faucet Mounting Bracket
- Steam Control Inlet Valve
- Typical approvals include NSF and ASME
Product Dimensions:
- Width: 38.1 Inches
- Depth: 41.25 Inches
- Height: 40.9 Inches
Cleveland Range Warranty:
1 Year Parts & Labor
Cleveland Range KDP80 Specifications
Dimensions
Width
38.1 Inches
Depth
41.25 Inches
Height
40.9 Inches
Details
Capacity
80 Gallons
Exterior Summary
Stainless Steel
Features
Manual Tilt
Features
Draw Off Valve
Kettle Jacket
Partial Jacket
NSF Listed
Yes
PSI
50 PSI
Placement
Free Standing
Power
Direct Steam
Type
Stationary
Weight
290 Pounds
Product Condition
New
Warranty
Manufacturer Warranty All items that include a warranty are based on the manufacturer's warranty policy. Purchasers are subject to working directly with the manufacturer to start & finish the warranty process. Note: Some manufacturers' warranties may not cover products when used in a residential setting. To ensure your intended use is covered, please contact us to verify the warranty terms before purchasing.
1 Year Parts & Labor
