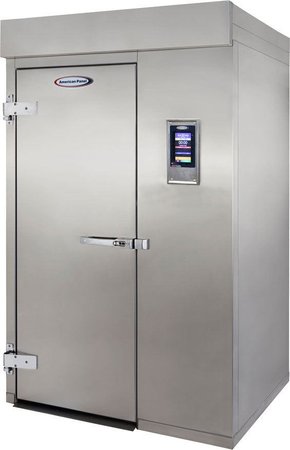

American Panel AP46BCF-1T, 62" Roll-in Blast Chiller / Shock Freezer, 1 Mobile Pan Rack Capacity

$31,640.00 /ea

Free Shipping

Options and Accessories
From $2927/month withcredit key logoPrequalify Now!
buy now text

American Panel AP46BCF-1T Overview

Model Notes: Remote condensing unit sold separately. Unit ships disassembled. 12" Clearance on hinge side of cabinet required for door opening. Minimum 15" Clearance required above cabinet.

Benefits:

  • Preserve food quality longer with this American Panel AP46BCF-1T blast chiller / shock freezer
  • Reduce bacteria growth on food by rapidly cooling food products to safe temperatures
  • Shock freezing increases food quality by preventing macro ice crystals from forming which can damage food tissues altering the taste and nutritional quality
  • Reduce labor and save time by preparing food whenever the time is right. Chefs can produce up to 7 days worth of food in just 3 or 4 building a stronger bottom line
  • By preserving food moisture, leftovers can be used the following day while still being as desirable as when they were first prepared
  • Bulk food items can be frozen while keeping them at a fresh tasting quality, allowing you to stock up on popular or seasonal menu items

Features:

  • Roll-in design allows for quick storage of (1) 35" x 39" x 73.5" mobile sheet pan rack
  • Core temperature probe provides accurate control of the temperature of the product
  • Blast chilling (soft or hard) lowers core food temperatures from 160°F to 38°F in just 120 minutes or less
  • Shock freezing can lower core food temperatures from 160° to 0°F within 4 hours
  • Chill up to 530 lbs of food at a time or freeze up to 276 lbs
  • Programmable quick start mode starts chilling cycle with just the touch of one button
  • Soft chilling mode holds air temps between 28° to 35°F, ideal for delicate food items
  • Hard chilling mode holds air temps between 0° to 10°, then 28° to 35° once food core temp reaches 60°F
  • Shock freeze mode lowers air temps down to -25° to -15°F and completes the cycle once food core temp reaches 0°F
  • Holding mode automatically keeps food at holding temperature at the end of any cycle
  • High velocity, indirect airflow pattern cools all levels of the blast chiller at identical rates
  • Unit manufactured using cam-lock insulated panels that are sized for easy assembly and ingress
  • Constructed of polished type 304 stainless steel with 4" CFC-free high density polyurethane insulation
  • Cabinet floor is 7/8" thick insulated panel with NSF cove and includes a 2" long ramp for access
  • Fully rounded interior corners for easy cleaning
  • 7" Capacitive touch screen is glove safe and user friendly
  • Store up to 150 product names for quick cycle identification
  • Heated defrost cycle is included within the unit's controller programming
  • Hinged swing out vent panel for easy evaporator cleaning
  • Internal electrical connections done via quick connect male-female connectors to minimize field wiring
  • Meets all FDA, NSF, and state regulations
  • Thawing mode optional (Sold Separately)

Product Dimensions:

  • Width: 62 Inches
  • Depth: 49 Inches
  • Height: 87 Inches

American Panel Warranty:

1 Year Parts & Labor

Since this item is not stocked in our warehouse, we can not guarantee availability, transit times, etc. If you need this item within a certain timeframe, please contact us before placing your order so that we can verify current stocking levels for you.

Product Brand

Certifications

UL Listed

AP46BCF-1T Resources

American Panel AP46BCF-1T Specifications

Dimensions

Width
62 Inches
Depth
49 Inches
Height
87 Inches

Details

Amps
8.2
Application
Blast Chilling & Shock Freezing
Capacity
1 Mobile Pan Rack
Chilling Capacity
530 Pounds
Compartment Front to Back
41 Inches
Compartment Height
74 Inches
Compartment Left to Right
36 Inches
Compressor Location
Remote
Exterior Summary
Stainless Steel
Freezing Capacity
276 Pounds
Installation Type
Freestanding
Interior
Stainless Steel
Phase
Single Phase
Roll-In Rack Capable
Yes
Temperature Range
0° - 38°
UL Listed
Yes
Volts
208 Volts
Weight
1,810 Pounds
Product Condition
New

Warranty

Manufacturer Warranty
1 Year Parts & Labor
