Crown GTS-40

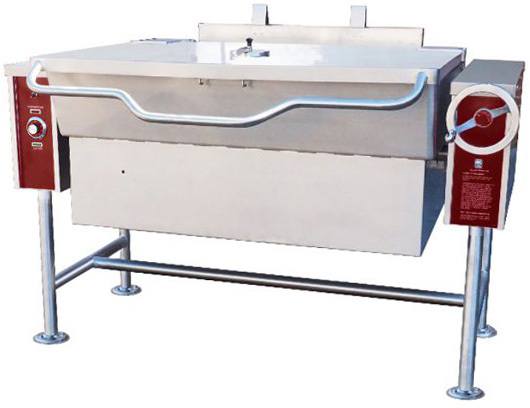

Crown GTS-40, 40 Gallon Gas Freestanding Tilt Skillet / Braising Pan, 100,000 Btu

Retail Price:$30,258.00 /ea

Free Shipping

Call us at 1-800-550-0706 for more info.
Options and Accessories

* Lead times vary based on manufacturer stock. Once your order has been processed, we will provide an estimated ship date.

Since this item is not be normally stocked in our warehouse, it may be shipped directly to you from the manufacturer or brought into our warehouse with our next stock order. As soon as the manufacturer provides us with your estimated shipping date, we will let you know. If you need your item by a certain date, please contact us before placing your order or leave a note at the checkout page, letting us know when you need it.

Recommended for this item

Crown GTS-40 Overview


  • Gas fired skillet with manual tilt, AGA/CGA and NSF certified.
  • The unit has a spring assisted stainless steel cover, with full width handle, no drip condensate guide and vent port with swing cover.
  • The pan has a sloped front and be front hinged for easy tilting pour control and comes complete with a removable pour lip strainer.
  • Pan is formed from 10 gauge stainless steel with a #4 finish exterior and polished interior with coved corners for easy cleaning.
  • Cooking surface is 5/8" thick stainless steel clad plate ensuring even heat distribution over entire cooking surface.
  • Controls are housed in a drip proof stainless steel console and supported on 1-5/8" (41mm) diameter stainless steel welded tubular frame with adjustable feet in the front and adjustable, flanged feet in the rear for securing to the floor.
  • Controls are enclosed in the left hand console and include solid state thermostat, temperature light, pan tilt interlock switch, ignition light, high limit thermostat and electronic ignition.
  • The right hand console houses the tilting mechanism which allows the pan to tilt forward a full 90° for complete emptying and is self locking for positive stop action.
  • The skillet will operate on a temperature range of 100°F to 450°F (38°C to 232°C) and a high temperature cut-off will be set at 536°F (280°C).

Product Dimensions:

  • Width: 58.5 Inches
  • Depth: 35 Inches
  • Height: 37.25 Inches

Crown Warranty:

1 year limited parts and labor

Product Brand


Made in USA

GTS-40 Resources

Crown GTS-40 Specifications


OEM Numbers
GTS-40, Southbend BGLT-40, Blodgett BLT-40G


58.5 Inches
35 Inches
37.25 Inches


40 Gallons
Cover Type
Exterior Summary
Stainless Steel
Gas Type
Gas Type
Single Phase
Free Standing
Tilt Style
Manual Tilt
Total Input BTU / HR
115 Volts
725 Pounds
Product Condition


Manufacturer Warranty All items that include a warranty are based on the manufacturer's warranty policy. Purchasers are subject to working directly with the manufacturer to start & finish the warranty process. Note: Some manufacturers' warranties may not cover products when used in a residential setting. To ensure your intended use is covered, please contact us to verify the warranty terms before purchasing.
1 year limited parts and labor
