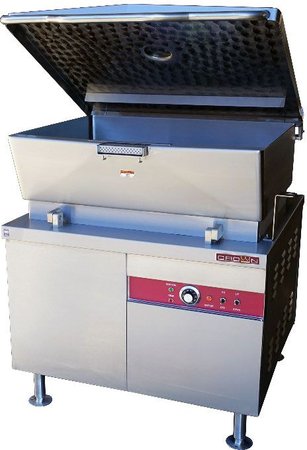

Crown GMTS-30

Crown GMTS-30, 80,000 Btu Gas Tilting Skillet, Braising Pan, Cabinet Base, 30 Gallon
Free Shipping
Options and Accessories
Crown GMTS-30 Overview
Features:
- Gas fired hydraulic tilting skillet
- AGA/CGA and NSF certified
- Spring assisted hinged stainless steel cover, complete with handle and a no drip condensate guide
- Pan body has a sloped front, be front hinged for tilting and easy pour control and comes complete with removable pour lip strainer.
- 10 gauge stainless steel pan with a #4 finish exterior and polished interior with coved corners for easy cleaning.
- Cooking surface is 5/8" thick stainless steel clad cooking plate for even heat distribution over entire cooking surface.
- Heavy duty welded angle constructed frame fitted with 6" (152 mm) stainless steel legs with adjustable bullet feet on the front and flanged, adjustable feet on the rear for securing to the floor.
- Enclosed with #4 finish type 304 stainless steel with removable side panels and two stainless steel front cabinet doors.
- All controls are mounted in the cabinet base which include a solid state thermostat, temperature light, tilt switch, electronic ignition, tilt safety switch and hydraulic lift system powered by a 1/2 HP electric motor for smooth and precise tilting action.
- High limit thermostat, located on the pan bottom.
- Cooking temperatures are between 100°F and 450°F (38°C and 232°C).
- Gas supply to the burners automatically shuts off when the pan is tilted.
Product Dimensions:
- Width: 42.5 Inches
- Depth: 39.5 Inches
- Height: 40.25 Inches
Crown Warranty:
1 year limited parts and labor
Crown GMTS-30 Specifications
OEM
OEM Numbers
GMTS-30, Southbend BGMTS-30, Blodgett BCH-30G
Dimensions
Depth
39.5 Inches
Height
40.25 Inches
Width
42.5 Inches
Details
Exterior Summary
Stainless Steel
Capacity
30 Gallons
Total Input BTU / HR
80,000
Power
Gas
Weight
650 Pounds
Phase
Single Phase
Volts
115 Volts
Gas Type
Propane
Gas Type
Natural
Cover Type
Hinged
Tilt Style
Power Tilt
Placement
Free Standing
Product Condition
New
Warranty
Manufacturer Warranty
1 year limited parts and labor
