Crown ELTM-60
Crown ELTM-60

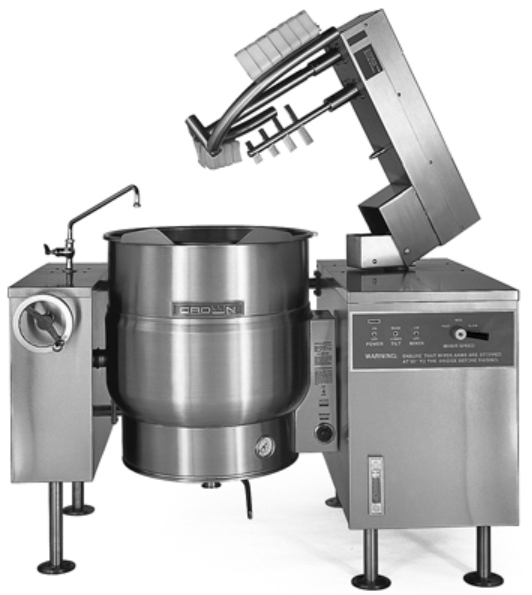

Shown with optional faucet. (Sold Separately)

Crown ELTM-60, 60 Gallon Electric 2/3 Jacket Kettle w/ Mixer, Free Standing, Tilting, 24,000 Watt

Retail Price:$72,212.00 /ea

-OR-
Business financing:
$1,733.09 /mo
Click to apply

Free Shipping

Call us at 1-800-550-0706 for more info.
Options and Accessories

Crown ELTM-60 Overview

Features:

  • 304 stainless steel construction with a satin finish
  • Double wall kettle interior forms a steam jacket around the lower 2/3 of the kettle
  • Hemispheric design of the bottom of the kettle provides superior heat transfer
  • Tubular stainless steel legs have flanged feet with four holes to secure the unit to the floor
  • Sealed stainless steel tilt mechanism allows the kettle to tilt forward a full 90° for complete emptying
  • Steam kettle controls include a power switch, indicator light, vacuum/pressure gauge, pressure relief valve, and low water shutoff
  • Tilt mechanism is self locking for positive stop action
  • Variable speed mixer powered by a 5 HP electric motor driving a hydraulic pump
  • Includes a primary stainless steel scraper/agitator and one high speed mixer
  • Agitators are removable for cleaning and require no tools
  • Bridge is constructed of 10 gauge stainless steel and contains two heavy duty hydraulic motors to drive the agitators
  • Power tilt bridge swings 140° out of the way for kettle tilting and cleaning
  • Thermostat range of 140°F to 285°F
  • 50 PSI max operating range

Product Dimensions:

  • Width: 66 Inches
  • Depth: 38.25 Inches
  • Height: 80 Inches

Product Brand

Certifications

NSF Listed

ELTM-60 Resources

Crown ELTM-60 Specifications

OEM

OEM Numbers
ELTM-60, Market Forge FTM-60LE, Market Forge FTM60LE, Southbend KEMTL-60

Dimensions

Depth
38.25 Inches
Height
80 Inches
Width
66 Inches

Details

Weight
880 Pounds
Capacity
60 Gallons
Type
Tilting
Exterior Summary
Stainless Steel
Kettle Jacket
Partial Jacket
Power
Electric
PSI
50 PSI
NSF Listed
Yes
Features
Mixer
Phase
Three Phase
Volts
208 Volts
Volts
240 Volts
Wattage
24,000 Watts
Product Condition
New
