Crown DC-3

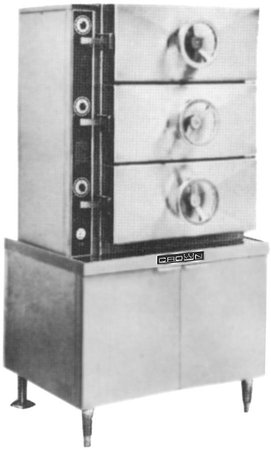

DC-3 model shown.

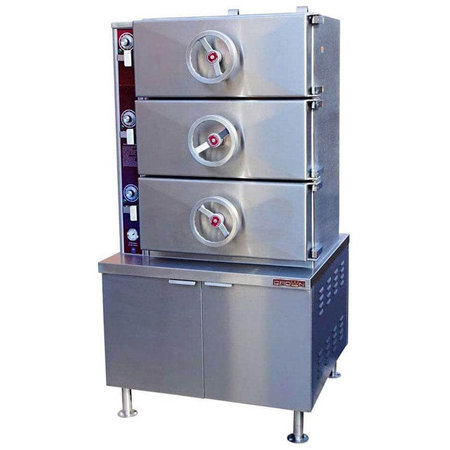

Crown DC-3, 3 Compartment Freestanding Direct Steam Pressure Steamer w/ 36" Cabinet Base, 3 BHP

Retail Price:$33,788.00 /ea

Free Shipping

Call us at 1-800-550-0706 for more info.

Crown DC-3 Overview

Features:

  • The cooker shall be constructed of all-welded satin finish stainless steel, type 304.
  • The doors shall have a removable inner liner of aluminum plate with full perimeter gasket seal, and a wheeland-screw closing mechanism.
  • The doors, with a clear opening of 10-1/4” x 26-3/8” (260 x 670mm), shall latch upon closing, and shall open 15° upon latch release.
  • Compartment operation shall be at a maximum pressure of 6 psi (41kPa).
  • The control housing shall be constructed of stainless steel with a full-access removable panel.
  • Automatic timer controls with visible and audible signals. At the end of the cooking cycle, the controls automatically shut off and exhaust the incoming steam, drain the condensate from the compartment, and sound a continuous signal until turned off manually.
  • Each cooking compartment shall have either removable shelf supports with one slide-out shelf (second shelf optional) or removable universal pan supports. The capacities shall range as follows:
  • Shelf supports: Four full size (1/1 gastronorm) pans, 2-1/2” or 4” (64mm or 100mm) deep.
  • The compartment cooker shall be mounted on a cabinet base with full perimeter angle frame, reinforced counter, all stainless steel #4 finish type 304 exterior, hinged doors and 6” (152mm) stainless steel legs with adjustable bullet feet on the front and flanged on the rear.

Product Dimensions:

  • Width: 36 Inches
  • Depth: 33.88 Inches
  • Height: 68 Inches

Crown Warranty:

1 Year Parts & Labor

Since this item is not stocked in our warehouse, we can not guarantee availability, transit times, etc. If you need this item within a certain timeframe, please contact us before placing your order so that we can verify current stocking levels for you.

Product Brand

Certifications

NSF ListedCSA Certified

DC-3 Resources

Crown DC-3 Specifications

OEM

OEM Numbers
DC-3, Market Forge 3AM36D

Dimensions

Width
36 Inches
Depth
33.88 Inches
Height
68 Inches

Details

CSA Certified
Yes
Exterior Summary
Stainless Steel
Input BHP
3 BHP
Interior
Stainless Steel
NSF Listed
Yes
Number of Compartments
3
Pan Capacity
24 Pan
Placement
Free Standing
Power
Direct Steam
Steam Source
Direct Steam
Type
Pressure Steamers
Weight
815 Pounds
Product Condition
New

Warranty

Manufacturer Warranty
1 Year Parts & Labor
