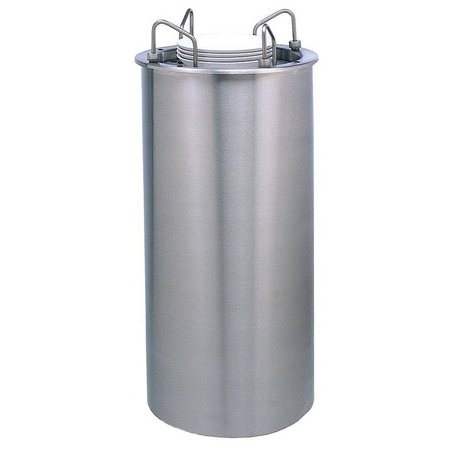

APW Wyott SL-9A, Drop-In 1-Compartment Adjustable Dish Dispenser, 3 1/2" to 9 1/8" Dishes

APW Wyott Drop-In Adjustube II Lowerator Dispenser

Features:

• Fits dishes 3 1/2" to 9 1/8" in diameter
• Self-Leveling
• Shielded
• Field adjustable to a variety of weights and diameters
  • Simply adjust the spring rate and position the stainless steel guide rods in the proper head guide holes
  • Knurled lock nuts hold the rods securely in place
  • Rods form the guides for the dispensing head
    • When full tube diameter is required, rods store in the flange and form bumpers to protect the dishes
• Dispensing mechanism uses springs attached to a sliding support bar that rides both the inside and outside of the tube
  • Prevents dishware from sticking in the down position and releasing unexpectedly
• Adjustable extension springs (weight adjustment up to 100 lbs.)
• Also accepts oval plates and platters up to 12"
• Vertical storage of 25 1/2"
• Dispensing head is stainless steel with 5 sets of reinforced guide holes for smooth, even operation
• Requires a 11 9/16" diameter cut out
• Flange diameter of 12 3/8"
• Maximum capacity of 131 lbs.

Product Dimensions:

• Height: 31.25 Inches
• Diameter: 12.38 Inches

APW Wyott Warranty:

1 year limited
