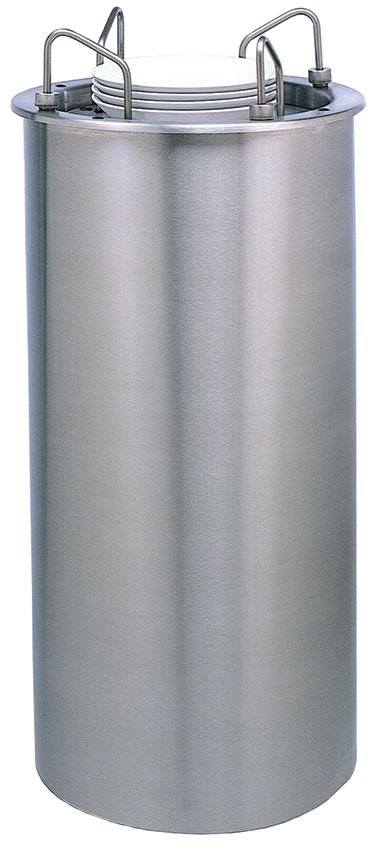

APW Wyott HL-12A, Drop-In 1-Compartment Adjustable Heated Dish Dispenser, 9 1/4" to 11 7/8" Dishes
This item is no longer available for purchase.
APW Wyott HL-12A Overview
APW Wyott Drop-In Adjustube II Lowerator Dispenser
Features:
- Fits dishes 9 1/4" to 11 7/8" in diameter
- Self-Leveling
- Shielded
- Field adjustable to a variety of weights and diameters
- Simply adjust the spring rate and position the stainless steel guide rods in the proper head guide holes
- Knurled lock nuts hold the rods securely in place
- Rods form the guides for the dispensing head
- When full tube diameter is required, rods store in the flange and form bumpers to protect the dishes
- Dispensing mechanism uses springs attached to a sliding support bar that rides both the inside and outside of the tube
- Prevents dishware from sticking in the down position and releasing unexpectedly
- 5' length of flexible metal conduit with standard 1/2" fittings and 6" wire leads for easy connection to junction box
- Adjustable extension springs (weight adjustment up to 100 lbs.)
- Also accepts oval plates and platters up to 12"
- Vertical storage of 25 1/2"
- Dispensing head is stainless steel with 5 sets of reinforced guide holes for smooth, even operation
- Requires a 14 5/16" diameter cut out
- Flange diameter of 15 1/8"
- Maximum capacity of 175 lbs.
Product Dimensions:
- Height: 31.25 Inches
- Diameter: 15.16 Inches
APW Wyott Warranty:
1 year limited
APW Wyott HL-12A Specifications
OEM
OEM Numbers
HL-12A, 30009800
Dimensions
Height
31.25 Inches
Diameter
15.16 Inches
Details
Amps
4.2
Base Style
Shielded
CSA Certified
Yes
Capacity
175 Pounds
Dish Compartment Shape
Round
Dish Compartment Size
9 1/4" to 11 7/8"
Exterior Summary
Stainless Steel
Features
Shielded
Features
Adjustable
Holds up to
72 dishes or 36 bowls
NSF Listed
Yes
Number of Compartments
1
Phase
Single Phase
Placement
Drop-In
Power
Electric
Style
Heated
Type
Dish Dispensers
UL Listed
Yes
Volts
120 Volts
Wattage
500 Watts
Weight
37 Pounds
Product Condition
New
Warranty
Manufacturer Warranty All items that include a warranty are based on the manufacturer's warranty policy. Purchasers are subject to working directly with the manufacturer to start & finish the warranty process. Note: Some manufacturers' warranties may not cover products when used in a residential setting. To ensure your intended use is covered, please contact us to verify the warranty terms before purchasing.
1 year limited
