Vulcan SMF620-System

Vulcan SMF620-System

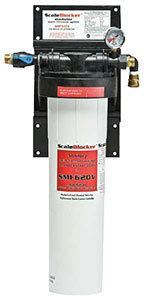

ScaleBlocker Water Filter Treatment System for Counter Steamers, 4 GPM

Retail Price:$1,069.00 /ea

Business financing:
$25.66 /mo
Click to apply

Product Overview

Water filter system, Single quick connect cartridge design. Patented technology reduces lime scale, chlorine, and chloramines without chemicals or additives. Reduces the need of frequent deliming. Modular mounting bracket and head assembly with 1/4 turn quick connect cartridge. Shutoff valve and connection for treated water for generator and untreated for cold water condensate. Filter water test port with shut off valve. Incoming water parameters are 40-125 PSI, 45-100°F, PH 6-9, alkalinity 80-100 PPM, chlorine/chloramines 0-4 PPM. chlorides 0-30 PPM, hardness 0-300 PPM (0 to 17.5 grains). Water connections are 3/4" NPTM with 3/4" Male GHT.


  • Single cartridge design
  • 1⁄4 turn cartridge quick disconnect and connect for easy changes, no wrench required
  • Category 3 recyclable cartridge
  • Nano crystal scale reduction reduces the need for deliming
  • Hollow carbon for chlorine/chloramines removal
  • Modular mounting bracket and head assembly
  • Quick connect inlet and outlet assemblies for reversing flow or adding optional pre-filter.
  • Shut off valve and pressure gauge standard
  • Connections are 3⁄4-inch NPTF with 3⁄4-inch Male GHT adaptors installed (male garden hose thread)
  • Filtered water test valve
  • Unfiltered water connection for cold water condensate with cap if not used
  • Free filter maintenance reminders when system is registered with Vulcan
  • Treats water up to 300 PPM (17.5 grains), hardness
  • Removes up to 4 PPM chlorine/chloramines


  • Service Flow 0-4 GPM
  • Service Life 12,000 Gal
  • Inlet / Outlet 3⁄4" NPTF inlet and 3⁄4" Male GHT (3⁄4" NPTF adapter) outlet
  • Inlet Min / Max Pressure 40-125 PSIG
  • Min / Max Temperature 45-100F (7-37C)
  • Weight, Operating 32 Lbs. (15.5 kg)



OEM Numbers
SMF620-System, SMF620, SMF620 System


Flow Rate
32 Pounds
Filter Type
Water Filter Additional Applications
Steam Equipment
