Vulcan K20EL

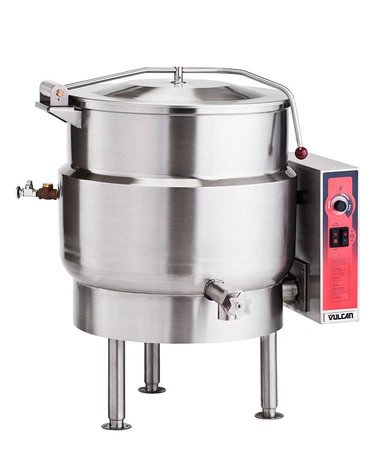

Model K40EL Shown. Model may differ from image shown. Some accessories may not be included.

Vulcan K20EL, 20 Gallon Electric Steam Jacket Kettle, Free Standing, Stationary, 12,000 Watt

This item is no longer available for purchase.Check out the replacement below.

replace for K20EL

Vulcan K20ELT

20 Gallon Electric Steam 2/3 Jacket Kettle, Free Standing, Tilting, 12,000 Watt

View replacement

Vulcan K20EL Overview

Features:

  • Electric self-contained, stainless steel, 2/3 jacketed floor mounted stationary steam kettle.
  • Ellipsoidal bottom kettle liner formed and fully welded standard type 316 and type 304 stainless steel exterior.
  • Bar rim (1/4 x 5/8 inch).
  • Embossed gallon/liter markings.
  • Faucet bracket.
  • 50 psi (3.4 kg/cm2) steam jacket rating.
  • Spring assist hinged stainless steel cover with condensate ring and drop down lift handle.
  • Two inch compression tangent draw-off valve with perforated strainer.
  • Tubular stainless steel legs with flanged feet.
  • Stainless steel enclosure for β€œwater resistant" controls.
  • Controls include a power switch, power β€œon" light, solid state temperature control, vacuum/pressure gauge, pressure relief valve, low water light and low water shut-off.

Product Dimensions:

  • Width: 32.5 Inches
  • Depth: 39 Inches
  • Height: 31.86 Inches

Vulcan Warranty:

1 year limited parts and labor

Product Brand

K20EL Resources

Vulcan K20EL Specifications

Dimensions

Width
32.5 Inches
Depth
39 Inches
Height
31.86 Inches

Details

Capacity
20 Gallons
Exterior Summary
Stainless Steel
Phase
Three Phase
Phase
Single Phase
Power
Electric
Type
Stationary
Volts
240 Volts
Volts
208 Volts
Wattage
12,000 Watts
Weight
196 Pounds
Product Condition
New

Warranty

Manufacturer Warranty All items that include a warranty are based on the manufacturer's warranty policy. Purchasers are subject to working directly with the manufacturer to start & finish the warranty process. Note: Some manufacturers' warranties may not cover products when used in a residential setting. To ensure your intended use is covered, please contact us to verify the warranty terms before purchasing.
1 year limited parts and labor
