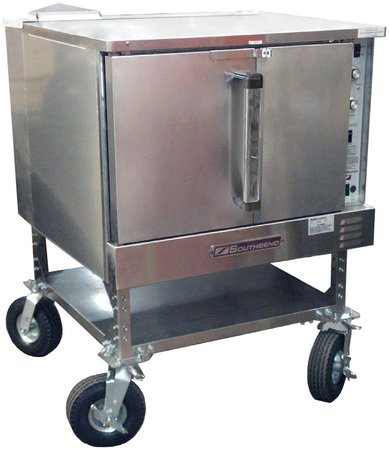

Southbend BGS/12SCAT, 54,000 Btu Propane Gas Convection Oven, Single Deck, Solid State Controls
This item is no longer available for purchase.Check out the replacement below.

Southbend PCG50S/SD-AT
50,000 Btu Gas Convection Oven, Single Deck, Solid State Controls
View replacementSouthbend BGS/12SCAT Overview
Features:
- Standard depth oven
- Single deck convection oven is 55-1/4” in height
- Patented “plug-in, plug-out” control panel - easy to service
- Slide out control panel for full view servicing
- 140° to 500°F solid state thermostat
- 60 Minute mechanical cook timer
- Stainless steel front, sides and top
- Full stainless steel dependent doors (Full 180° opening)
- Transportation door locks (Pad lock not included)
- Fully enclosed stainless steel rear jacket for transportation protection
- Heat keeping dual door seal system
- Top and bottom rear covers for utility protection
- Coved, porcelain interior
- Stay cool heavy duty door handle
- Soft Air, two-speed, 1/2 hp fan motor
- Custom design rugged terrain tube chassis
- Integrated equipment shelf on tube chassis
- Heavy duty removable wire rack guides spaced on 1 5/8" centers
- 11-position rack guides and 5 plated oven racks
- Electronic ignition
- Forced cool down fan mode
- Oven “heat” light cycles with burners
- All Terrain 10” casters
- 1000 lbs maximum capacity)
- Interior oven lights
Product Dimensions:
- Width: 38 Inches
- Depth: 38.5 Inches
- Height: 55.25 Inches
Southbend Warranty:
1 Year Parts & Labor
Southbend BGS/12SCAT Specifications
Dimensions
Width
38 Inches
Depth
38.5 Inches
Height
55.25 Inches
Details
Amps
7.9
Capacity
5 Full size pans
Compartment Front to Back
21.5 Inches
Compartment Height
20 Inches
Compartment Left to Right
29 Inches
Controls
Solid State Controls
Convection Oven Size
Full Size
Decks
Single
Exterior Summary
Stainless Steel
Features
Spark Ignition
Gas Type
Propane
Interior
Porcelain
NSF Listed
Yes
Number of Doors
2
Oven Depth
Standard Depth
Phase
Single Phase
Placement
Free Standing
Power
Gas
Temperature
140° - 500°F
Total Input BTU / HR
54,000
Volts
120 Volts
Weight
750 Pounds
Product Condition
New
Warranty
Manufacturer Warranty All items that include a warranty are based on the manufacturer's warranty policy. Purchasers are subject to working directly with the manufacturer to start & finish the warranty process. Note: Some manufacturers' warranties may not cover products when used in a residential setting. To ensure your intended use is covered, please contact us to verify the warranty terms before purchasing.
1 Year Parts & Labor
